Workshop Manuals Factory service & repair Rover
Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Boot lid applique

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Exterior fittings › Boot lid applique
BodyBoot lid applique

BOOT LID APPLIQUE

Service repair no - 76.19.28

Remove

  1. Remove number plate.

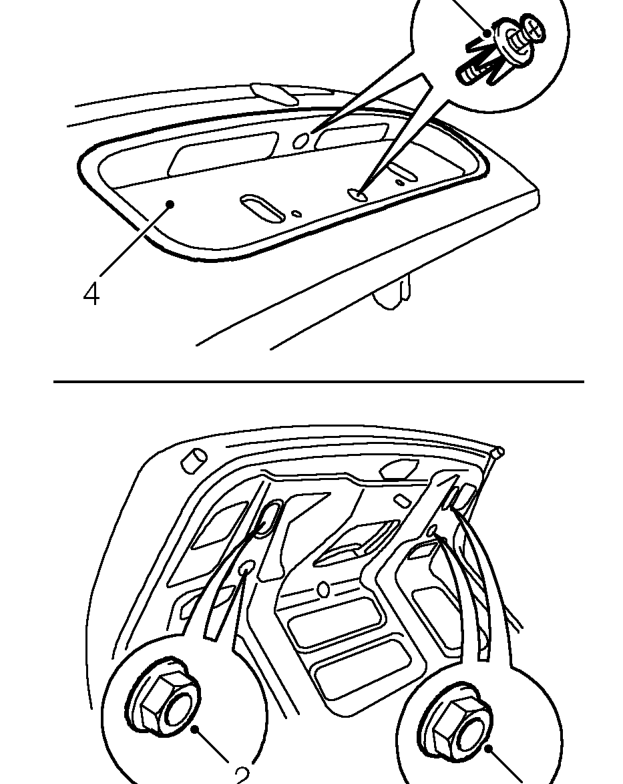

Boot lid applique – Remove number plate.
  1. Remove 4 nuts securing applique to boot lid.
  2. Remove 2 scrivet screws securing applique to boot lid.
  3. Remove applique from boot lid.

Refit

  1. Fit applique to boot lid.
  2. Fit and tighten scrivet screws.
  3. Fit and tighten nuts.
  4. Fit number plate.

REAR BUMPER - 4 DOOR

Service repair no - 76.22.15

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

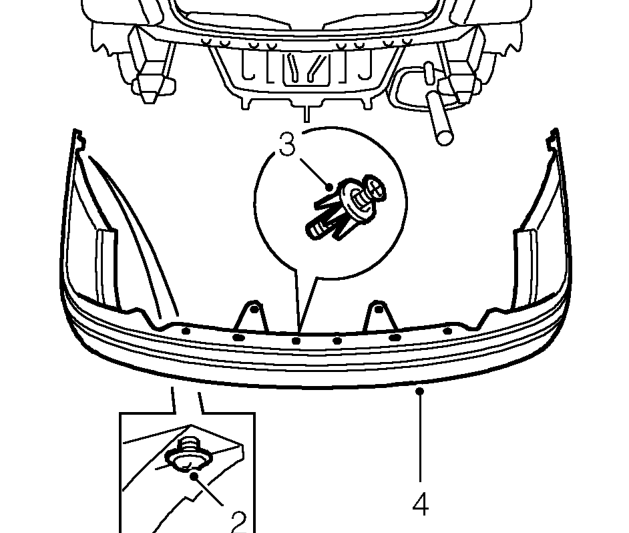

Rear bumper - 4 door – Raise rear of vehicle.
  1. Remove 2 screws securing bumper ends to body.
  2. Remove 7 scrivets securing bumper to body.
  3. With assistance, remove rear bumper.

Refit

  1. With assistance position bumper to vehicle.

NOTE: Ensure bumper engages in 2 clips on each side.

  1. Fit scrivets securing bumper.
  2. Fit and tighten screws securing bumper ends to body.
  3. Remove stand(s) and lower vehicle.
