Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front bumper

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Exterior fittings › Front bumper
BodyFront bumper · page 1 of 2

FRONT BUMPER

Service repair no - 76.22.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

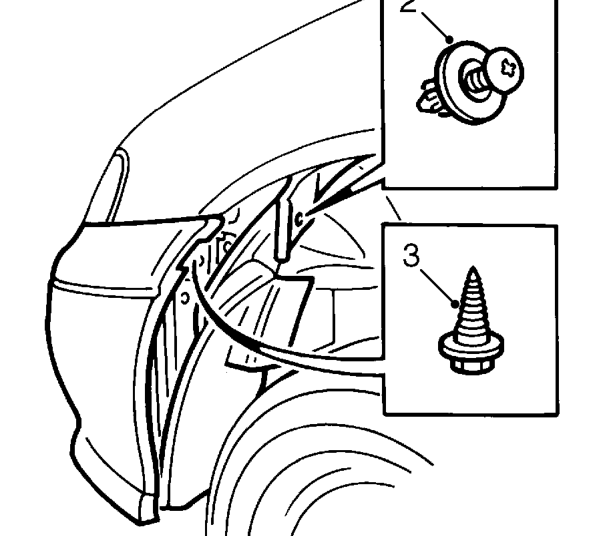

Front bumper – Raise front of vehicle.
  1. Remove 2 scrivets securing wheel arch liners to front wing edges.
  2. Release wheel arch liners and remove 2 screws bumper to front wings.

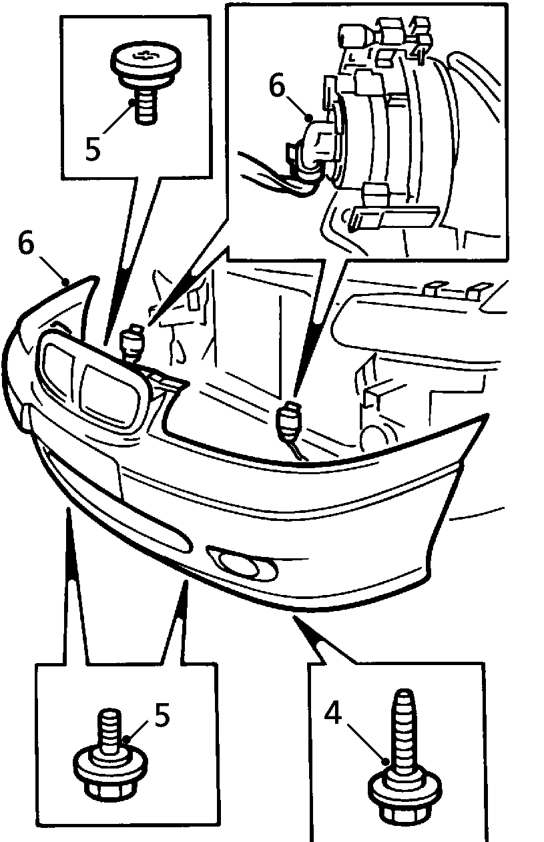

Front bumper – Release wheel arch liners and remove 2 screws bumper to front wings.
  1. Remove 2 screws securing wheel arch liners to bumper.
  2. Remove 2 screws securing bumper to front cross member and remove 5 screws securing bumper to bonnet support platform
  3. Using assistance, release bumper and disconnect fog lamp multiplugs, remove bumper assembly.
