Workshop Manuals Factory service & repair Rover
Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front wheel arch liner

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Exterior fittings › Front wheel arch liner
BodyFront wheel arch liner

FRONT WHEEL ARCH LINER

Service repair no - 76.10.48

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

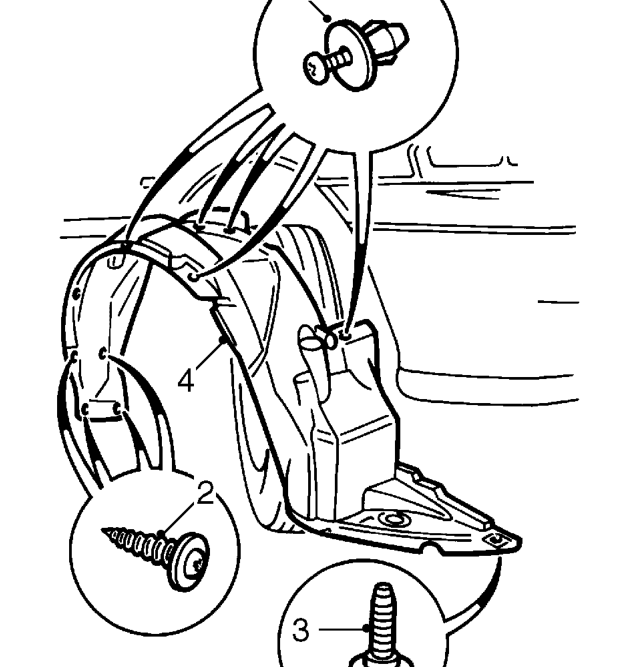

Front wheel arch liner – Raise front of vehicle, one side.
  1. Remove 4 screws securing wheel arch liner to rear of wheel arch.
  2. Remove bolt securing wheel arch liner to bumper valance.
  3. Remove 6 scrivets and remove wheel arch liner.

Refit

  1. Position wheel arch liner and align to bumper valance.
  2. Secure wheel arch liner with scrivets and screws.
  3. Fit bolt to secure wheel arch liner to bumper valance.

CAUTION: Renew any scrivets showing signs of damage.

  1. Remove stand(s) and lower vehicle.
