Boot lock release cable (page 3 of 3)

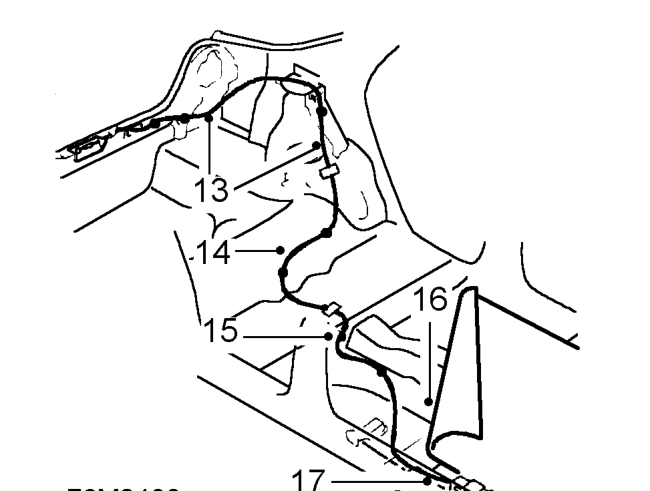

13. Release cable from clips in luggage compartment.
14. Pull cable through rear seat squab panel
15. Release cable from heelboard clips.
16. Release carpet from front and rear door sill and from under ’B’ post finisher

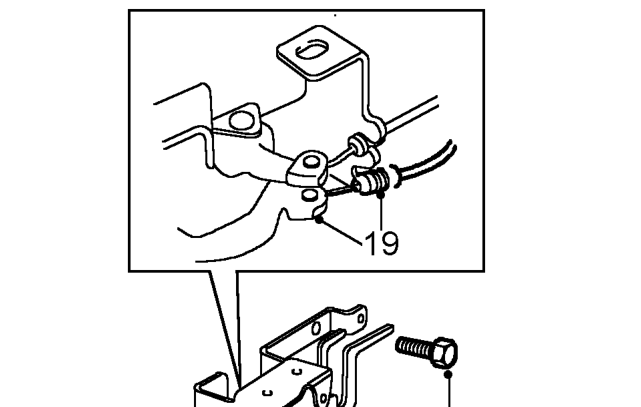

17. Move carpet from sill and release cable from sill clips.

18. Remove bolts securing cable control.
19. Release outer cable from control abutment and inner cable from lever.
20. Remove release cable from vehicle.

Refit

1. Position cable to vehicle, align cable to footwell and control lever.
2. Connect inner and outer cable to control lever.
3. Align control and tighten bolts.
4. Align cable to sill and secure to clips
5. Route cable across to passenger’s side and secure cable to heel board clips.
6. Pass cable through seat squab pan and secure cable to clips.
7. Connect to inner and outer cable to boot latch.
8. Secure cable to clips in luggage compartment.
9. Position carpet to sills and fit door sill finishers.
10. Position carpet under ’D’ post finisher on drivers side and securing with studs.
11. Fit seat belt to lower anchorage point and tighten bolt to 32 Nm.
12. Fit control lever cover. Fit stud cover.
13. Fit control knobs to levers.
14. Position luggage compartment side trim and fit retaining studs.
15. Fit finisher ’D’ post lower. See Interior trim components.
16. Fit rear seat cushion.
