Boot lid - assembly

Refit

1. Apply sealant to hinges.
2. With assistance, position taildoor, fit nuts but do not tighten.
3. Connect support struts.
4. Close taildoor, align hinges and tighten nuts to 22 Nm.
5. Adjust taildoor edge support rubbers if necessary to ensure taildoor is flush with body on both sides.
6. Open taildoor and fit headlining rear trim.
7. Feed harness through body and taildoor and secure harness covers.
8. Connect harness multiplugs and secure harness clips.
9. Position taildoor casing, secure with clips and scrivets.
10. Fit casing grip and secure with screw.
11. Fit taildoor side finishers.
12. Fit D/E post finishers. See Interior trim components.

BOOT LID - ASSEMBLY

Service repair no - 76.19.01/99

Remove

1. Remove boot lid latch. See this section.

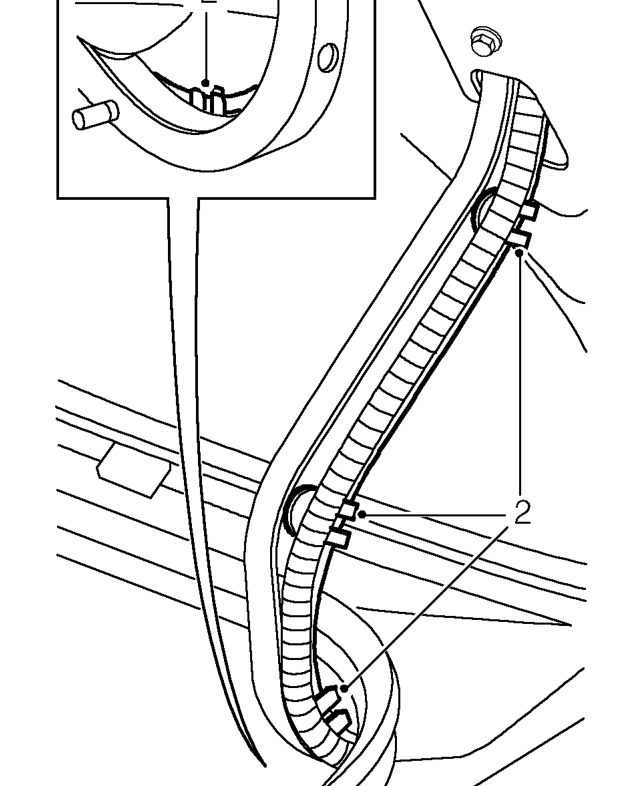

2. Release boot lid release-cable from 4 clips on boot lid RH hinge.
3. Withdraw release cable from boot lid.
4. Remove both number plate lamps. See ELECTRICAL, Repairs.
