Rear door latch

Refit

1. Position handle to door and secure control rod.
2. Fit bolts to handle, tighten to 9 Nm.
3. Align latch, fit screws and tighten to 6 Nm.
4. Secure control rods to clips.
5. Position remote control crank, fit and tighten screw.
6. Position lock rod protector, fit and tighten screw. Fit stud.
7. Secure plastic sheet to door.
8. Refit door trim casing. See this section.

REAR DOOR LATCH

Service repair no - 76.37.13

Remove

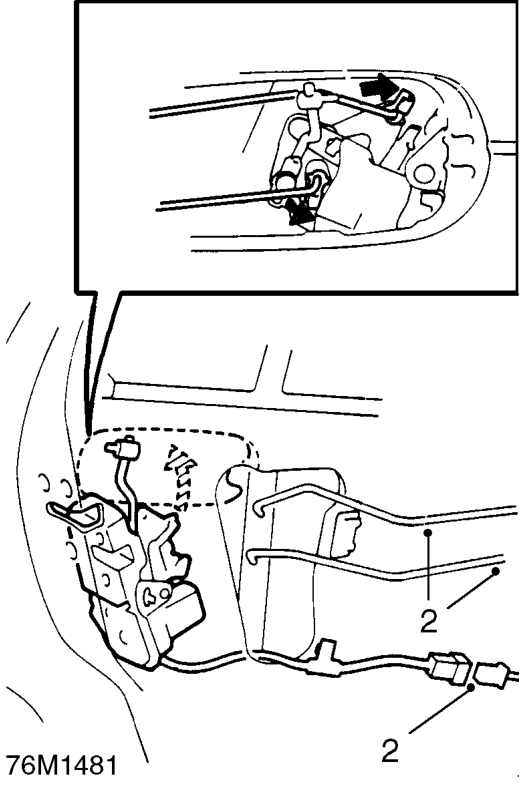

1. Remove rear door outside handle.

2. Release clips and remove inner handle and lock rods from latch. Remove rods. Disconnect lock multiplug, release harness clips from door then remove latch.

NOTE: Take care not to disturb setting of threaded link rod.
