Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front door trim casing

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Doors › Front door trim casing
BodyFront door trim casing · page 1 of 2

FRONT DOOR TRIM CASING

Service repair no - 76.34.01.99 Service repair no - 76.34.01

Remove

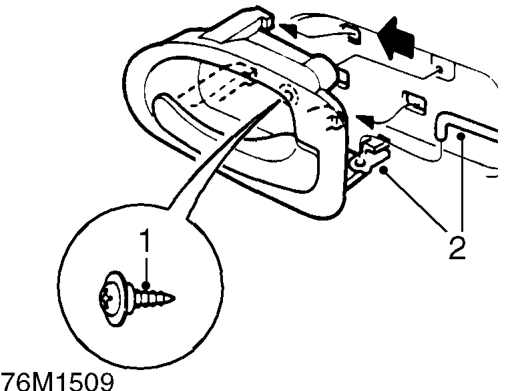

Front door trim casing – Service repair no - 76.34.01.99 Service repair no - 76.34.01
  1. Remove screw and slide lock remote release assembly forward to release from door panel.
  2. Release plastic clip and remove release assembly from control rod.

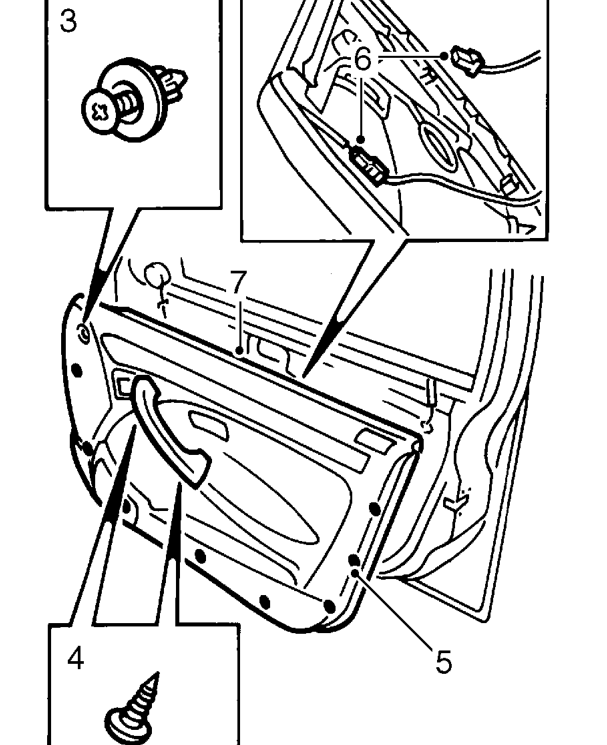

Front door trim casing – Release plastic clip and remove release assembly from control rod.
  1. Remove scrivet screw and scrivet securing casing to door.
  2. Remove 2 screws securing grab handle.
  3. Release 8 studs and remove trim casing from top edge of door.
  4. Disconnect window lift and lock indicator light multiplugs.
  5. Remove trim casing.
