BodyRear door trim casing

REAR DOOR TRIM CASING

Service repair no - 76.34.04/99 Service repair no - 76.34.04

Remove

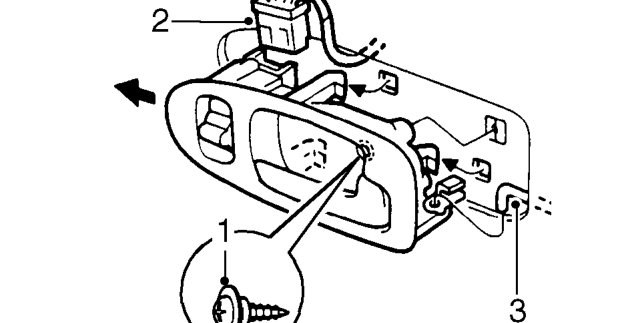

Rear door trim casing – Service repair no - 76.34.04/99 Service repair no - 76.34.04
  1. Remove screw and slide the remote release assembly forward to release from door panel.
  2. Disconnect multiplug from window lift switch.
  3. Release plastic clip and remove release assembly from control rod.

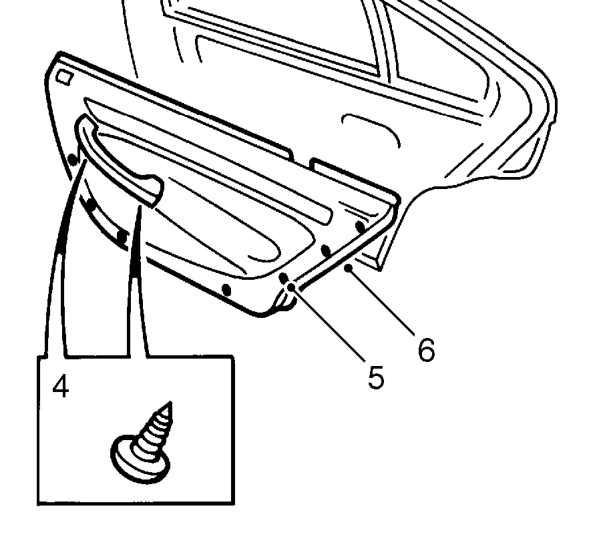

Rear door trim casing – Release plastic clip and remove release assembly from control rod.
  1. Remove 2 screws securing grab handle.
  2. Release 7 studs and remove trim casing from top edge of door.
  3. Remove trim casing.

Do not carry out further dismantling if component is removed for access only.

Rear door trim casing – Do not carry out further dismantling if component is removed for access only.
  1. Remove 7 studs from trim casing.
  2. Remove 3 screws and remove door protector.
  3. Remove 2 screws and remove grab handle.
  4. Remove 2 screws and remove sill locking button guide and clamp plate.
  5. Remove 6 spire clips and remove trim insert from casing.
