Front door latch

7. Remove clip retaining private lock and remove lock.

NOTE: Take care not to disturb setting of threaded rod.

Refit

1. Fit private lock to handle and fit retaining clip.
2. Position handle to door, connect control rods and tighten bolts to 9 Nm.
3. Connect private lock harness multiplug and secure harness clips to door.
4. Secure plastic sheet to door.
5. Refit door trim casing. See this section.

FRONT DOOR LATCH

Service repair no - 76.37.12

Remove

1. Remove front door outside handle. See this section.

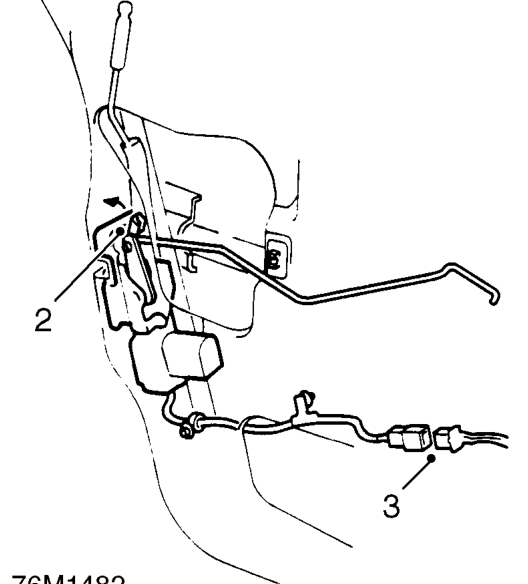

2. Release clip securing inside handle rod to latch and release rod.
3. Disconnect door lock multiplug, release multiplug and harness clips from door.

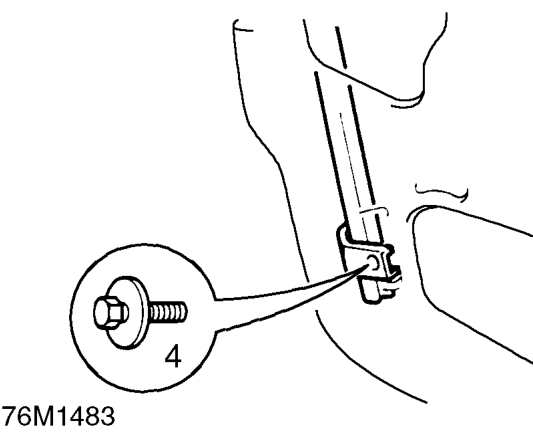

4. Remove bolt securing door glass rear channel to door.
