Power windows

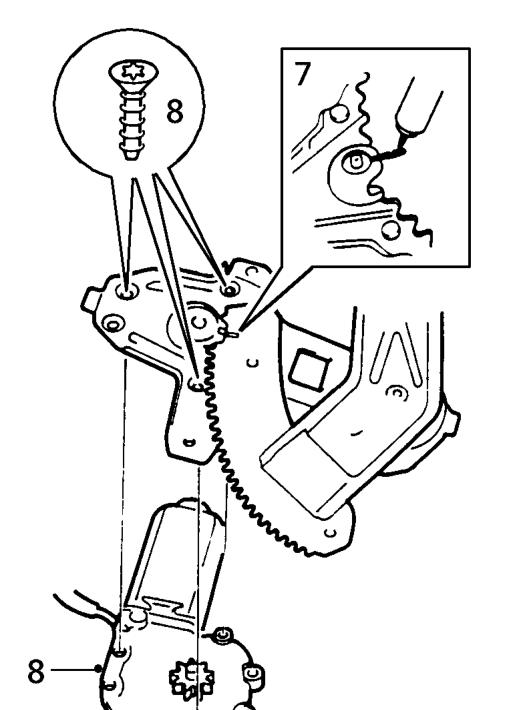

7. Before removing power window motor mark the location by scribing a line across the sector gear and regulator.

Power windows

8. Using a Torx bit remove 3 screws securing motor to regulator, then remove the motor.

Refit

1. Apply grease to motor gear and regulator pivot points.
2. Ensure regulator marks are aligned, position motor to regulator and tighten screws to 7 Nm.
3. Position and align regulator assembly to door.
4. Fit bolts to secure regulator, tighten to 8 Nm.
5. Align roller guide, fit bolts to align with original marks and tighten to 8 Nm.

Power windows

6. Connect motor multiplug and secure to door.
7. Refit rear door glass. See this section.

REAR DOOR OUTSIDE HANDLE

Service repair no - 76.58.02

Remove

NOTE: Raise door glass fully. Fit protection on door to avoid damage to paintwork.

1. Remove door trim casing. See this section.
2. Release top edge of plastic sheet from rear of door.

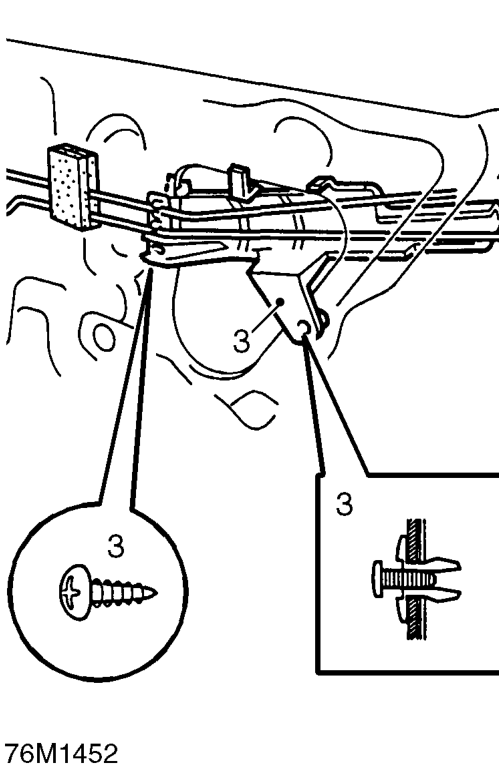

3. Remove screw and scrivet then remove door lock rod protector.
