Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Power windows (page 2 of 2)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Doors
BodyPower windows · page 2 of 2
Diagram

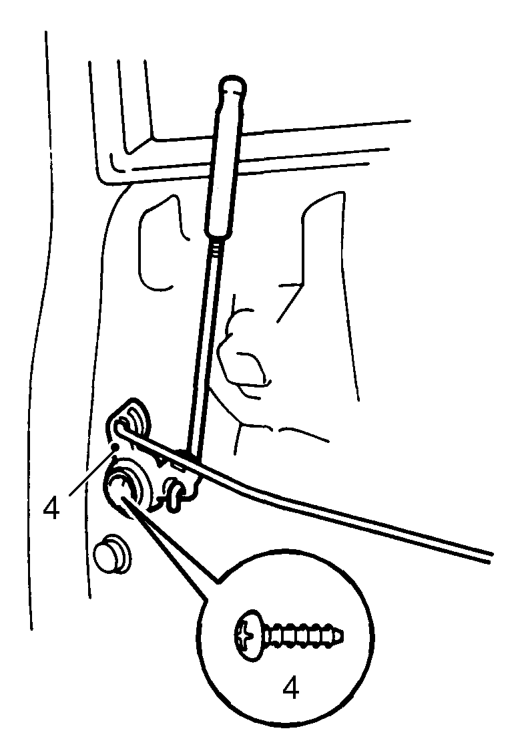

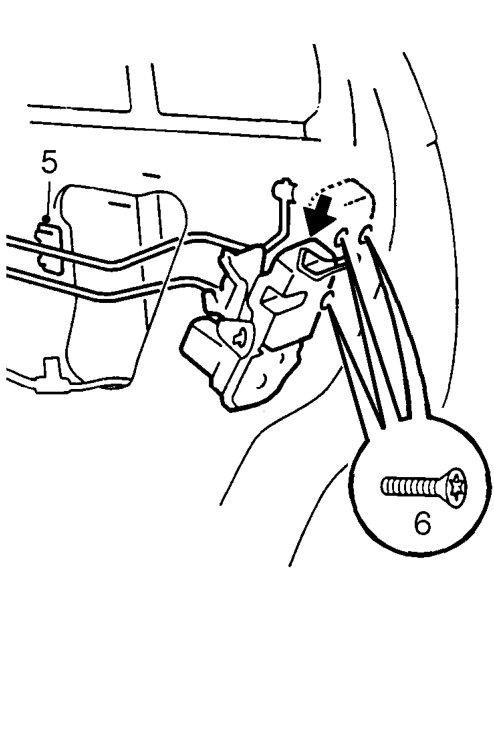

  1. Remove screw and release remote control crank from door.
Remove screw and release remote control crank from door.
  1. Release control rods from door clips.

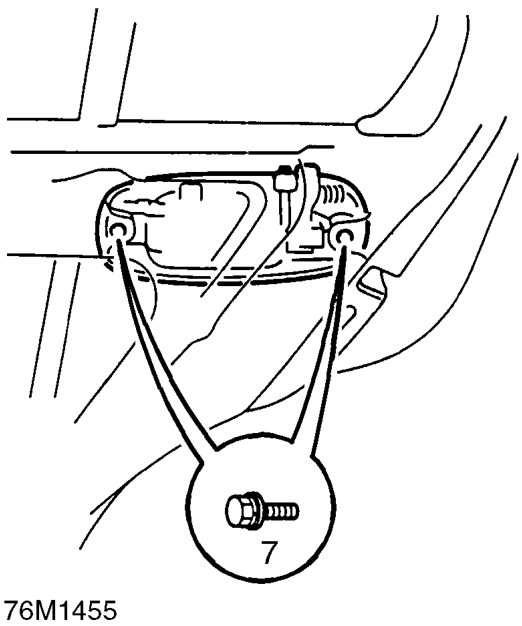

  2. Using a Torx bit, remove 3 screws from door latch and push latch downwards.
Using a Torx bit, remove 3 screws from door latch and push latch downwards.

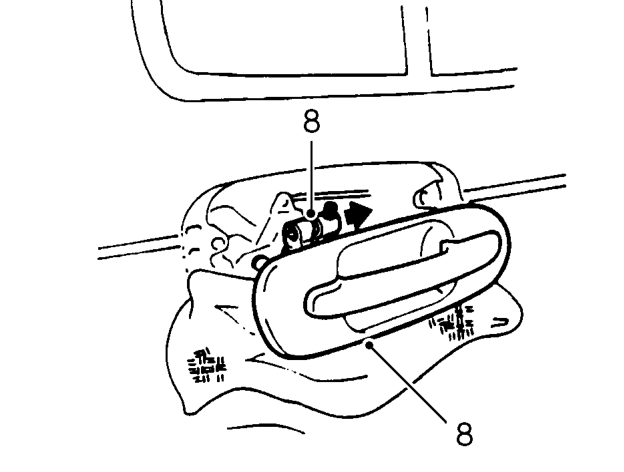

  1. Remove 2 bolts from outside door handle and release handle from door.
Remove 2 bolts from outside door handle and release handle from door.
  1. Release control rod and remove handle.

NOTE: Take care not to disturb setting of threaded rod.
