Boot lid - alignment

BOOT LID - ALIGNMENT

Service repair no - 76.19.03

Adjust

1. Check alignment of boot lid against both rear quarter panels.
2. Open boot lid and mark position of boot lid to hinge washers.
3. Loosen 4 bolts and adjust position of boot lid. Tighten bolts to 9 Nm.
4. Close boot lid and check alignment against both rear quarter panels.
5. Open boot lid and re-adjust boot lid position if necessary.
6. Close boot lid and check alignment against both rear quarter panels.

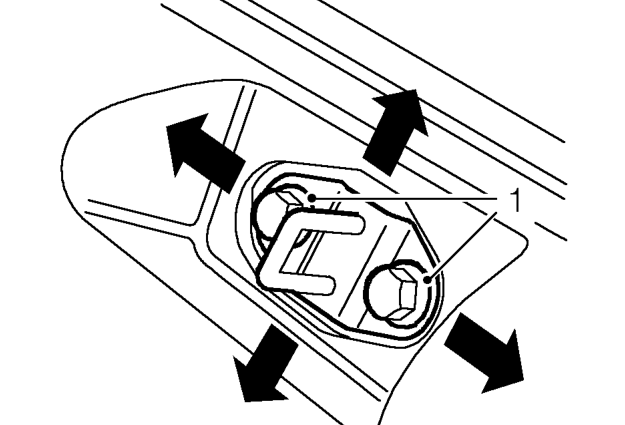

BOOT LID STRIKER - ADJUST

Service repair no - 76.19.04

Adjust

1. Loosen striker bolts and close boot lid.
2. Check for equal gap and alignment to adjacent panels.
3. Open boot lid and tighten striker screws to 9 Nm.

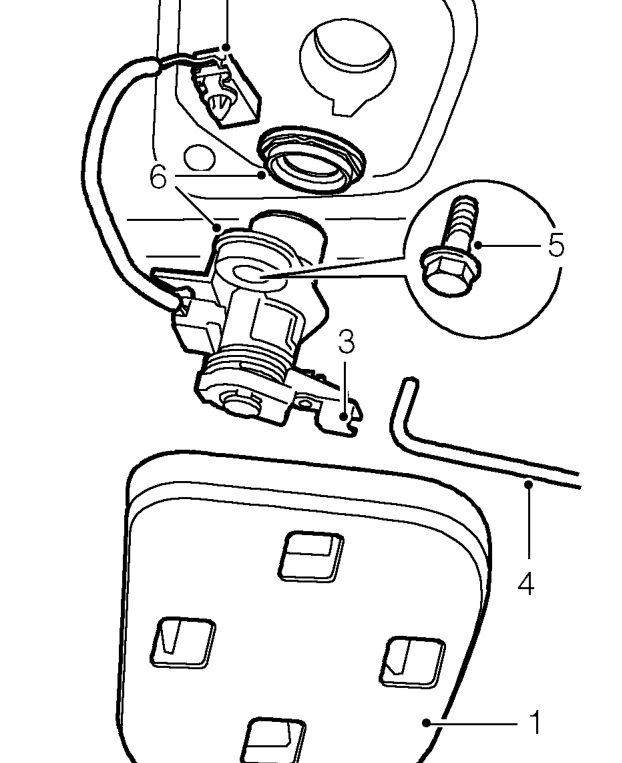

BOOT LID PRIVATE LOCK

Service repair no - 76.19.10

Remove

1. Remove private lock access cover from boot lid.
2. Release private lock multiplug from boot lid fixing and disconnect multiplug.
3. Release clip securing control rod to private lock.
4. Release control rod from private lock.
5. Remove screw securing private lock to boot lid.
6. Remove private lock and collect chrome sealing ring.

Refit

1. Fit chrome sealing ring to boot lid.
2. Position private lock to boot lid and secure with screw.
3. Connect control rod to private lock and secure with clip.
4. Connect multiplug and secure fixing to boot lid.
5. Fit private lock access cover to boot lid.
