BOOT LOCK RELEASE CABLE

Service repair no - 76.37.71

Remove

  1. Remove finisher ’D’ post lower. See Interior trim components.
  2. Remove rear seat cushion.

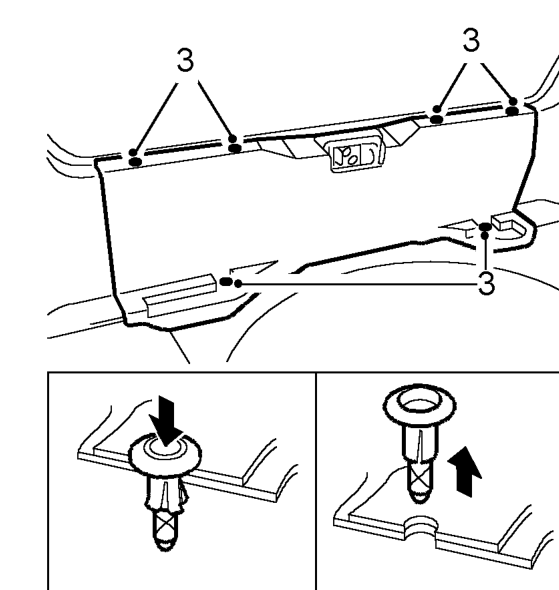

Boot lock release cable – Remove rear seat cushion.
  1. Depress pins, release studs and remove luggage compartment centre trim.

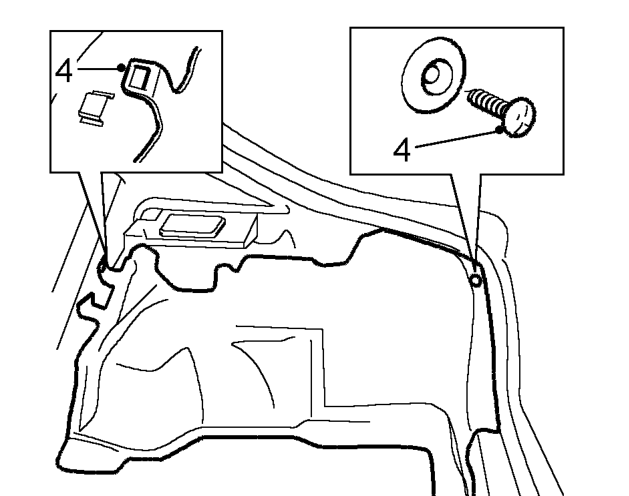

Boot lock release cable – Depress pins, release studs and remove luggage compartment centre trim.
  1. Release locking screw and remove boot carpet.

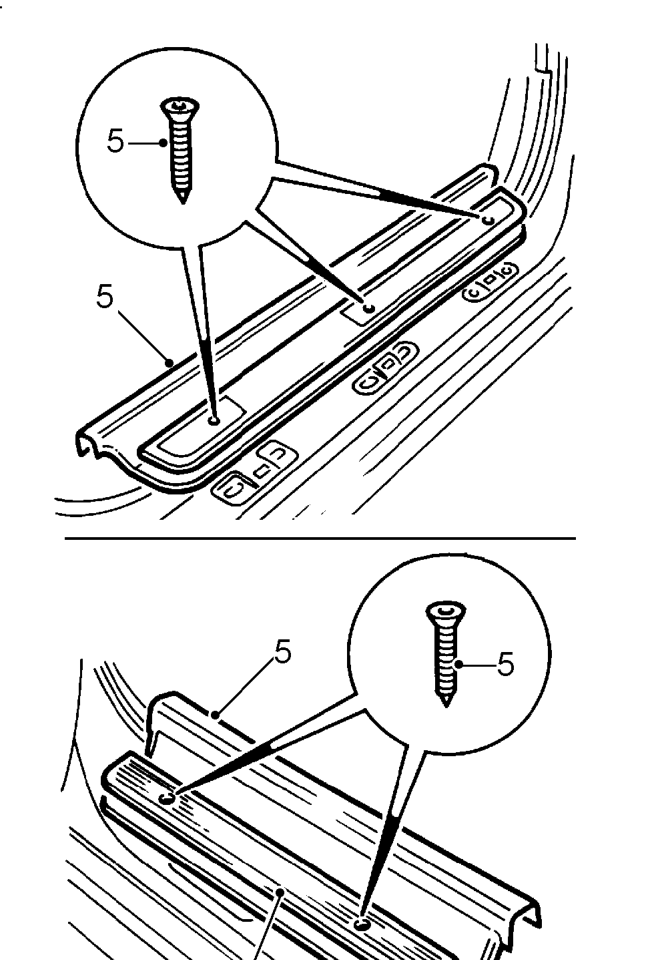

Boot lock release cable – Release locking screw and remove boot carpet.
  1. Remove 7 screws and remove RH front, RH rear and LH rear door sill finishers.
