Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Boot lock release cable (page 2 of 3)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Doors
BodyBoot lock release cable · page 2 of 3
Diagram

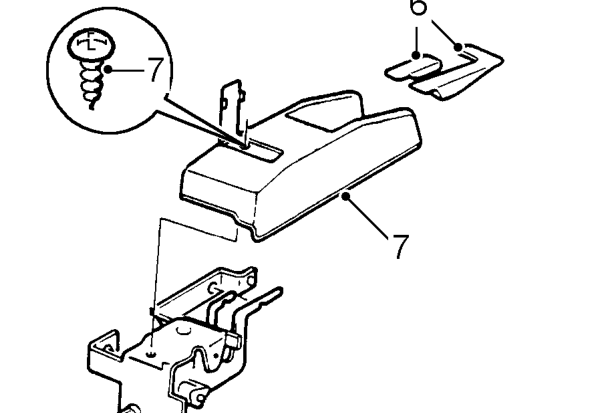

  1. Remove boot and fuel flap release control knobs.
  2. Remove stud and screw and remove control knob cover.
Remove stud and screw and remove control knob cover.

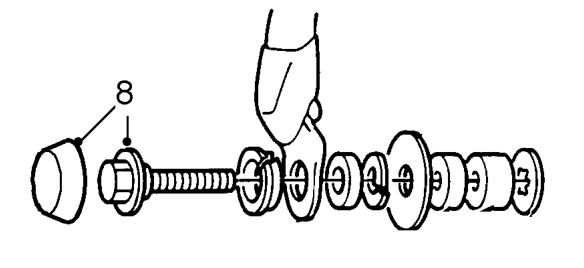

  1. Remove driver’s seat belt lower anchorage bolt cover and remove bolt.
Remove driver’s seat belt lower anchorage bolt cover and remove bolt.

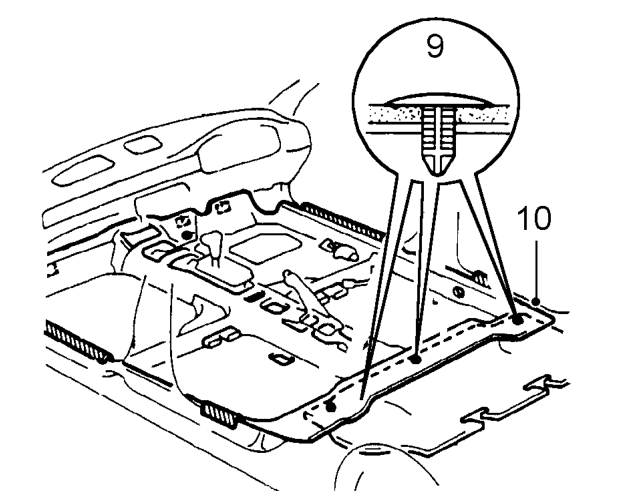

  1. Remove studs securing rear section of floor carpet.
  2. Release carpet from under ’D’ post lower finisher, driver’s side.
  3. Fold carpet forward for access to cable.
Fold carpet forward for access to cable.

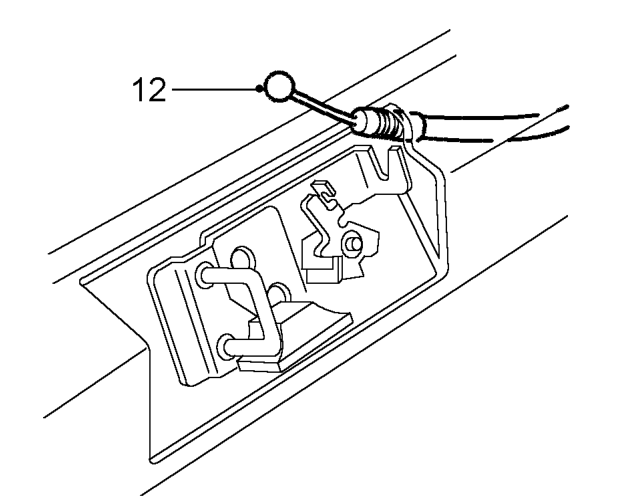

  1. Release cable from clips on rear panel and disconnect release cable from boot latch.
