Front door glass regulator

FRONT DOOR GLASS REGULATOR

Service repair no - 76.31.45

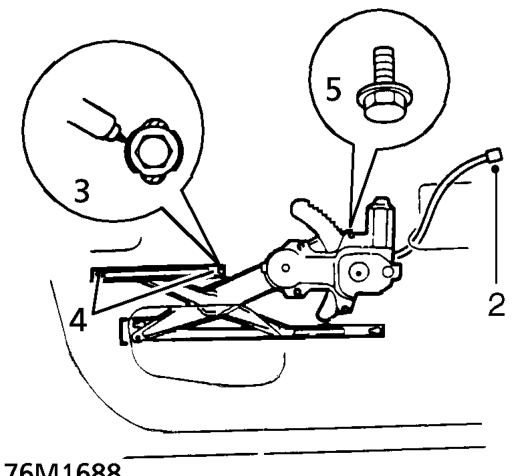

Remove

1. Remove front door glass. See this section.

Power windows

2. Disconnect door glass motor multiplug and release harness clip from door.
3. Mark position of roller guide bolts on door before removal.
4. Loosen 2 bolts securing regulator to door.
5. Remove 4 bolts securing regulator to door.
6. Release and remove regulator assembly from door.

7. Before removing power window motor, mark the location by scribing a line across the sector gear and regulator.

Power windows

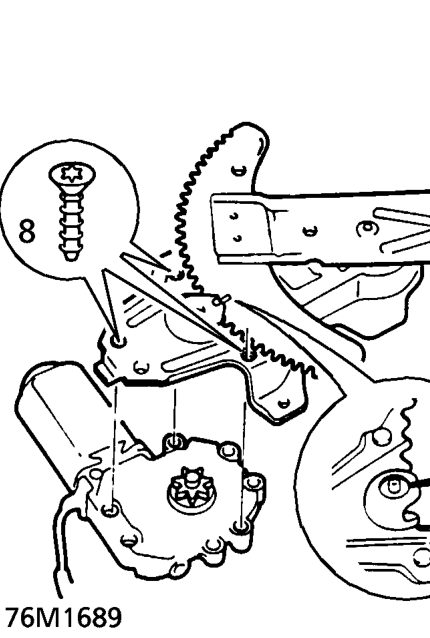

8. Using a Torx bit remove 3 screws securing motor to regulator, then remove the motor.

Refit

1. Apply grease to motor gear and regulator pivot points.
2. Ensure regulator marks are aligned, position motor to regulator and tighten screws to 7 Nm.
3. Position and align regulator assembly to door.
4. Fit bolts to secure regulator, tighten to 8 Nm.
5. Align roller guide, fit bolts to align with original marks and tighten to 8 Nm .

Power windows

6. Connect motor multiplug, secure clip to door.
7. Refit front door glass. See this section.
