Front door plastic sheet (page 2 of 2)

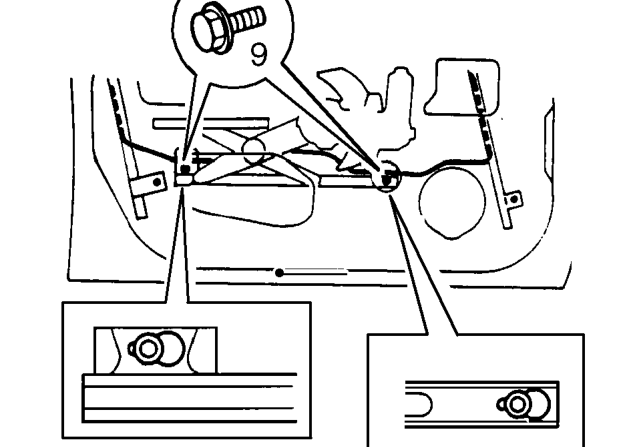

9. Loosen bolts securing glass to regulator.

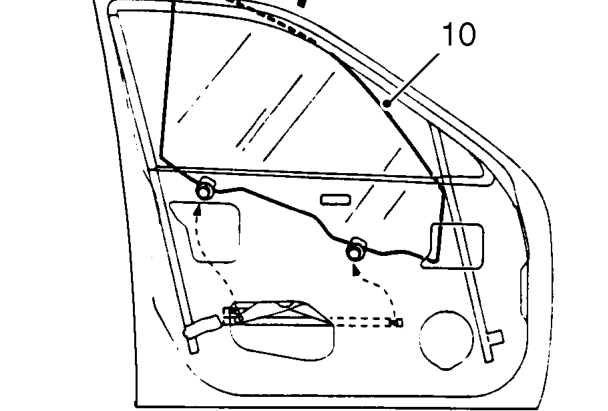

10. Release glass from regulator and remove glass from door.

Refit

1. Position glass to door, align to regulator and tighten bolts to 9 Nm.
2. Fit plastic sheet to door and fit locating dowels.

NOTE: Feed door harness multiplugs through plastic sheet.

3. Secure harness clips to door.
4. Connect tweeter and door mirror multiplugs.
5. Portion window lift control and connect multiplugs.
6. Align control to door and fit screws.
7. Fit trim casing to front door. See this section.
