Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Boot lock release cable

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Doors › Boot lock release cable
BodyBoot lock release cable · page 1 of 3

BOOT LOCK RELEASE CABLE

Service repair no - 76.37.71

Remove

  1. Remove finisher ’D’ post lower. See Interior trim components.
  2. Remove rear seat cushion.

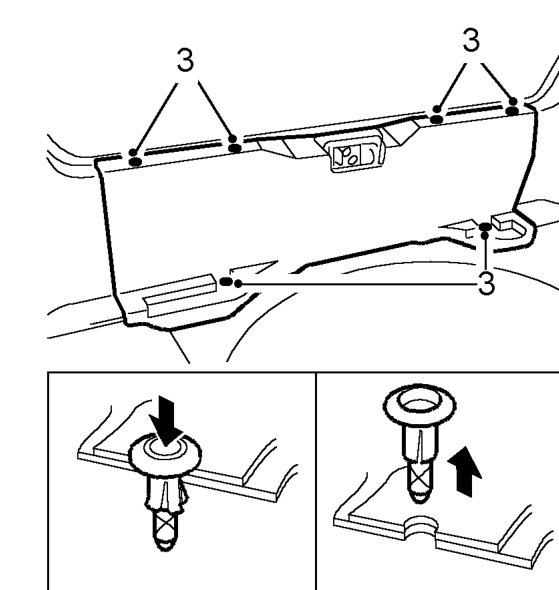

Boot lock release cable – Remove rear seat cushion.
  1. Depress pins, release studs and remove luggage compartment centre trim.
Boot lock release cable – Depress pins, release studs and remove luggage compartment centre trim.

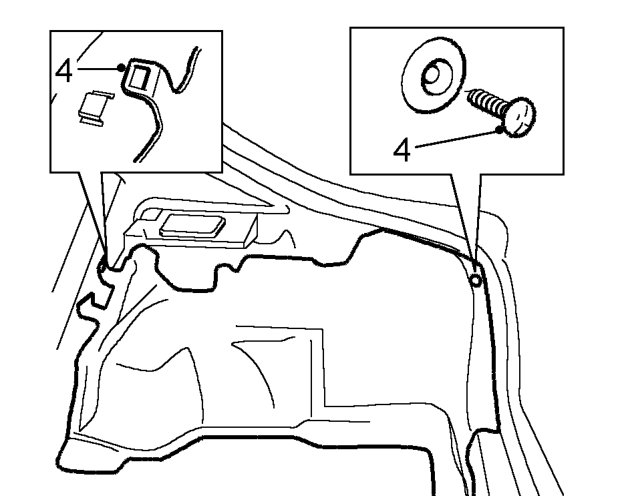

  1. Release locking screw and remove boot carpet.
Boot lock release cable – Release locking screw and remove boot carpet.

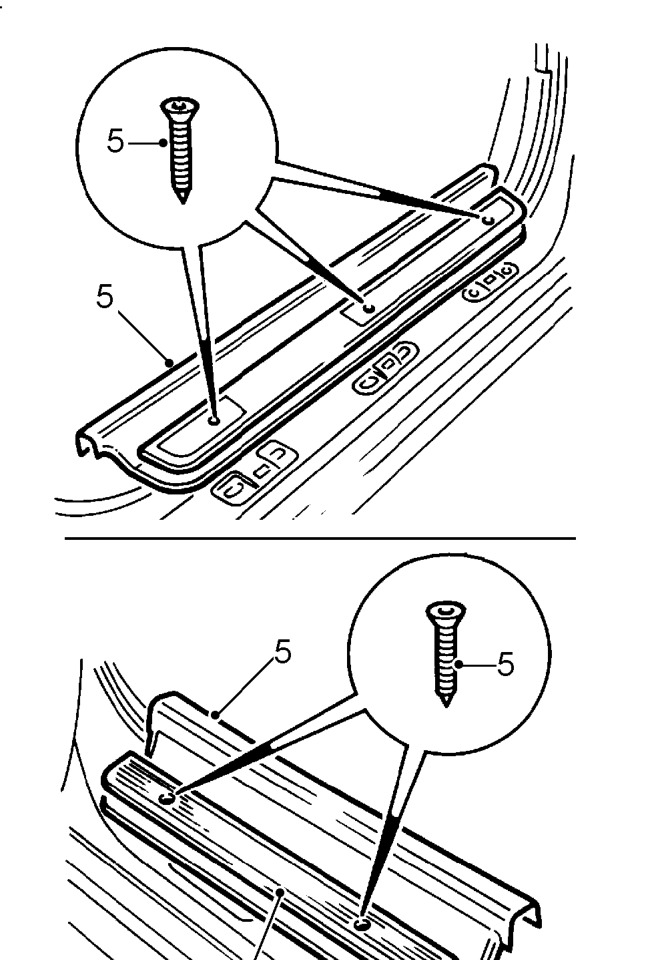

  1. Remove 7 screws and remove RH front, RH rear and LH rear door sill finishers.
