FRONT DOOR OUTSIDE HANDLE

Service repair no - 76.58.07

Remove

NOTE: Raise door glass fully. Fit protection on door to avoid damage to paintwork.

  1. Remove door trim casing. See this section.

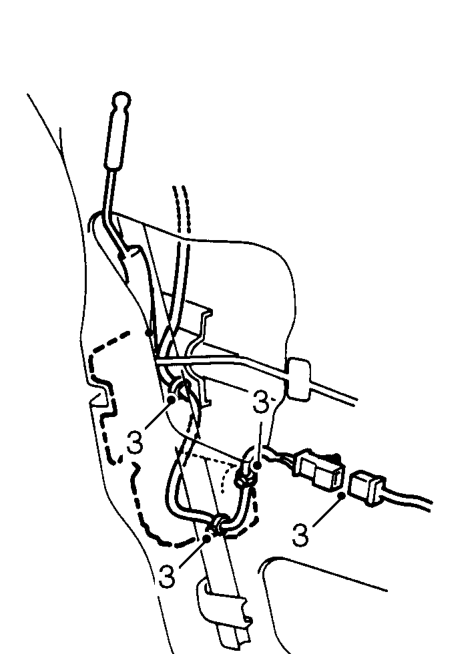

  2. Release plastic sheet from rear of door.
Front door outside handle – Release plastic sheet from rear of door.

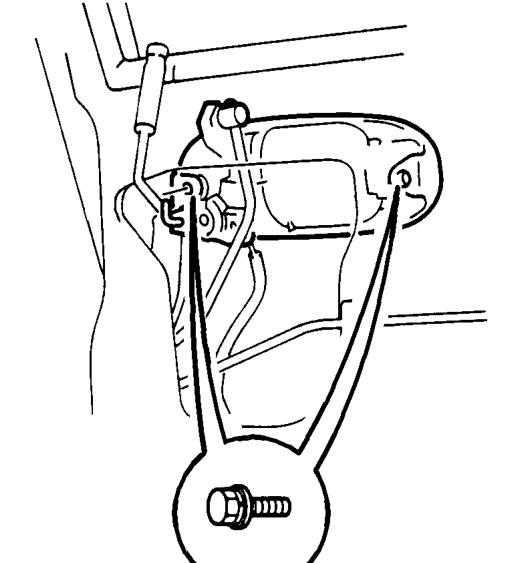

  1. Release 4 clips private lock harness and multiplug to door. Disconnect multiplug.
Front door outside handle – Release 4 clips private lock harness and multiplug to door. Disconnect multiplug.

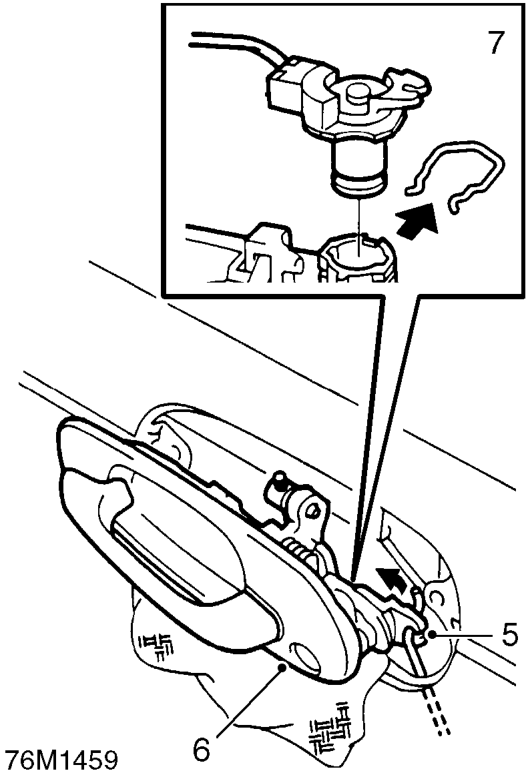

  1. Remove 2 bolts outside handle to door.
Front door outside handle – Remove 2 bolts outside handle to door.
  1. Release control rod and private lock rod from handle.
  2. Remove handle from door.
