Door striker - adjust

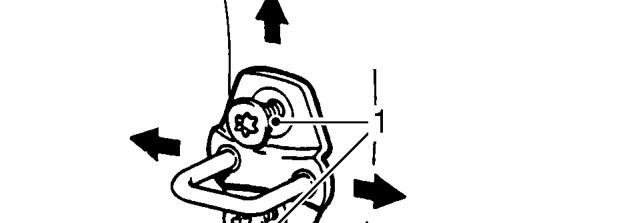

DOOR STRIKER - ADJUST

Service repair no - 76.28.05

1. Using a Torx bit loosen 2 striker screws and close door.
2. Check door for flush fit to adjacent panels and edges for equal gap.
3. Open door and tighten striker screws to 18 Nm.

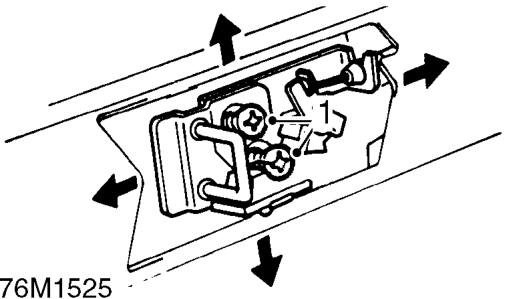

TAILDOOR STRIKER - ADJUST

Service repair no - 76.28.28

1. Using a Torx bit loosen striker screws.
2. Close taildoor, check for equal gap and alignment to adjacent panels.
3. Open taildoor and tighten striker screws to 9 Nm.
