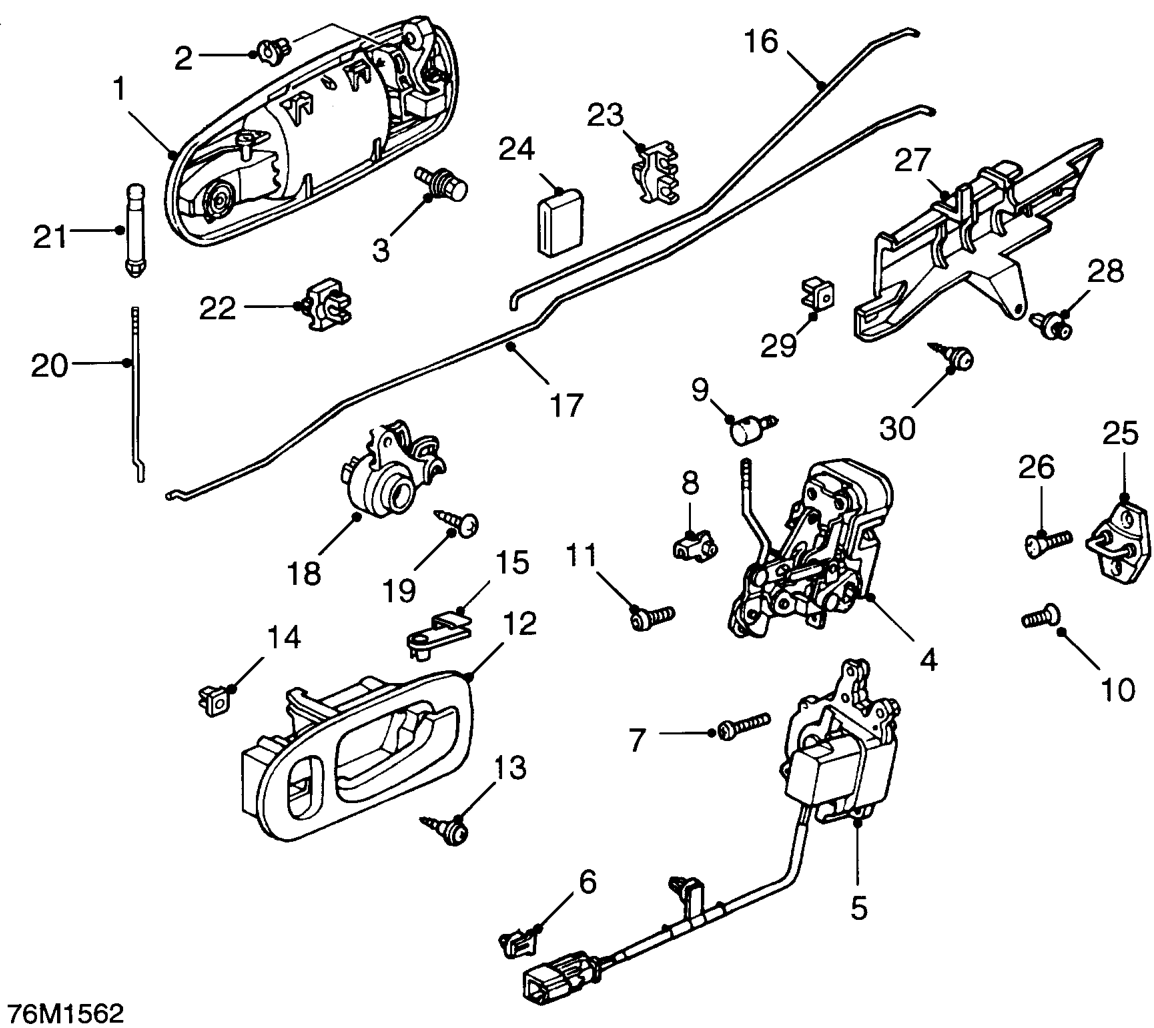

Rear door central locking components

REAR DOOR CENTRAL LOCKING COMPONENTS

1. Outer door handle assembly
2. Bush - joint
3. Bolt/washer - M6
4. Latch assembly
5. Door lock actuator
6. Coupler clip - ORANGE
7. Tapping screw
8. Snap joint - R
9. Joint
10. Flat screw
11. Tapping screw
12. Inside door handle assembly
13. Tapping screw
14. Tapping grommet - 4 mm
15. Connector - rod
16. Rod - inside handle
17. Lock rod
18. Crank assembly
19. Tapping screw
20. Rod - inside handle
21. Locking knob - inside handle
22. Holder - single lock rod
23. Holder - twin lock rods
24. Cushion - lock rods
25. Striker - door lock
26. Bolt - striker
27. Protector - door rods
28. Clip - protector
29. Tapping grommet
30. Tapping screw
