Rear door glass regulator

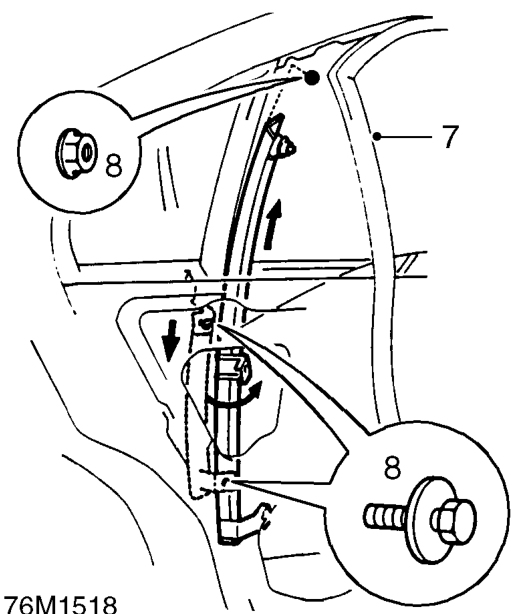

7. Release rubber from glass rear channel.
8. Loosen nut and remove 2 bolts securing rear channel to door, lower channel into door, turn channel through 90 degrees and remove channel.
9. Raise glass and remove from door.

Refit

1. Position glass to door.
2. Position rear channel to door, align to position. Fit bolts and nut to channel, do not tighten.
3. Position rubber to channel, align glass to channel and regulator.
4. Fit and tighten bolts securing glass to regulator 9 Nm.
5. Motor or wind glass up or down to align glass channel, tighten channel nut to 4 Nm.
6. Tighten channel bolts to 8 Nm.
7. Fit plastic sheet to door and fit locating dowels.

NOTE: Feed window lift switch harness through plastic sheet.

8. Secure harness clips to door.
9. Fit trim casing to rear door. See this section.

REAR DOOR GLASS REGULATOR

Service repair no - 76.31.46

Remove

1. Remove rear door glass. See this section.

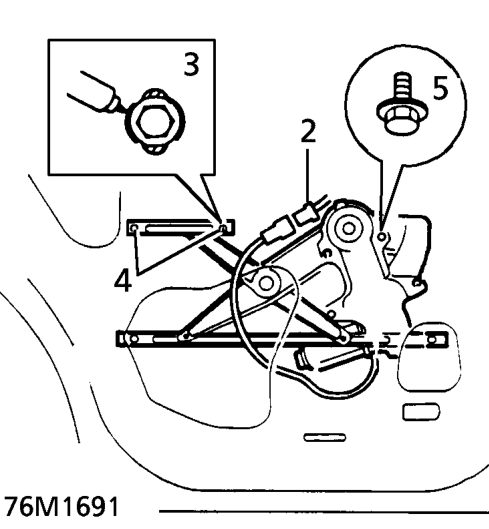

Power windows

2. Disconnect door glass motor multiplug and release multiplug from door.
3. Mark position of roller guide bolts on door before removal.
4. Loosen 2 bolts securing regulator arm to door.
5. Remove 4 bolts securing regulator to door.
6. Release and remove regulator assembly from door.
