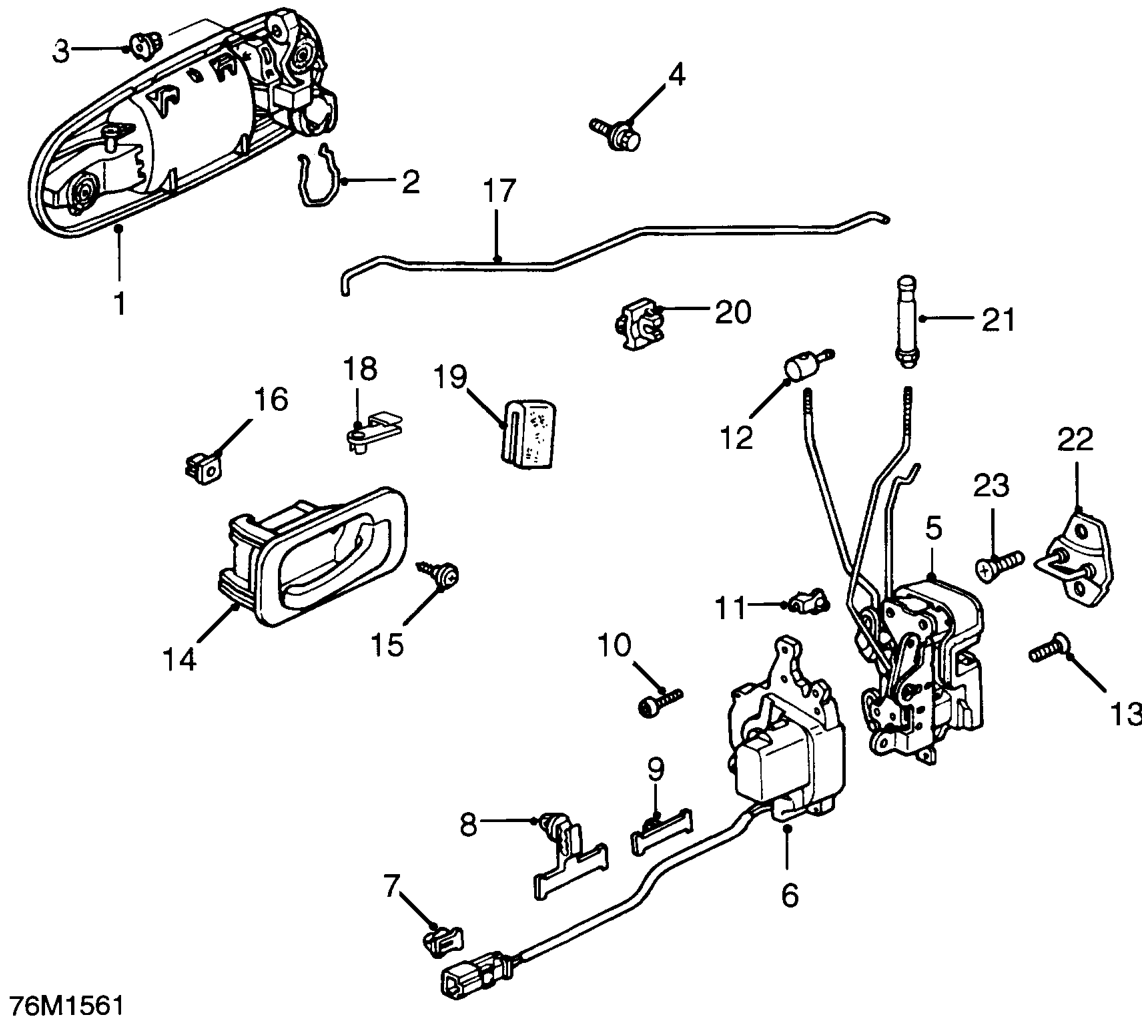

Front door central locking components

FRONT DOOR CENTRAL LOCKING COMPONENTS

1. Outer door handle assembly
2. Retaining clip - cylinder lock
3. Bush - joint
4. Bolt/washer - M6
5. Latch assembly
6. Door lock actuator
7. Coupler clip - RED
8. Harness clip
9. Harness clip - WHITE
10. Tapping screw
11. Snap joint - L
12. Joint
13. Flat screw
14. Inside door handle assembly
15. Tapping screw
16. Tapping grommet - 4 mm
17. Rod - inside handle
18. Connector - rod
19. Cushion - lock rod
20. Holder - lock rod
21. Locking knob - inside handle
22. Striker - door lock
23. Bolt - striker
