Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Taildoor assembly

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Doors › Taildoor assembly
BodyTaildoor assembly · page 1 of 2

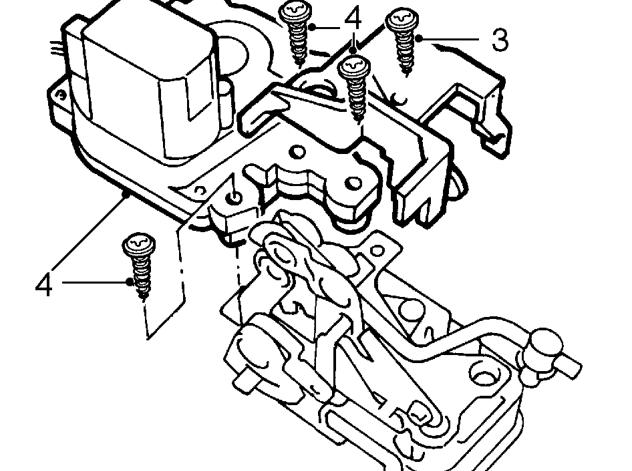

Diagram
  1. Using a Torx bit remove screw securing latch cover.
  2. Remove 3 screws securing lock to latch, remove lock.

Refit

  1. Position lock and cover to latch and tighten screws to 7 Nm.
  2. Position latch to door, fit lock rods and secure clips.
  3. Connect lock multiplug and secure harness clips.
  4. Refit rear door outside handle.

TAILDOOR ASSEMBLY

Service repair no - 76.28.29/99

Remove

  1. Remove both D/E post finishers. See Interior trim components.

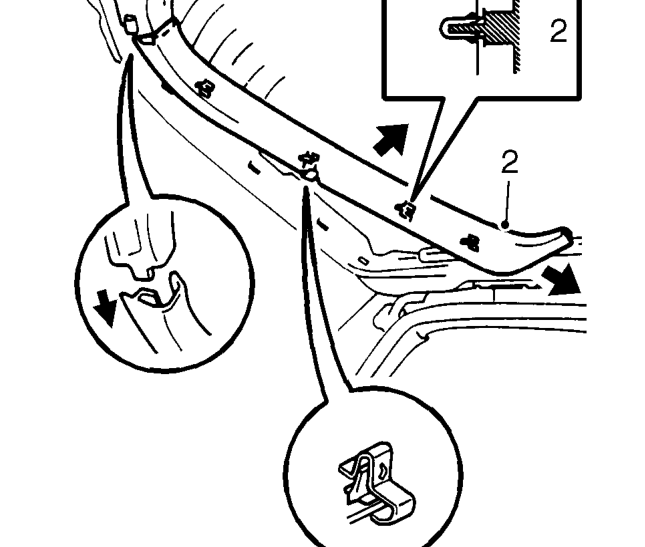

Taildoor assembly – Remove both D/E post finishers. See Interior trim components.
  1. Release 4 clips on each taildoor side finisher and remove finishers.
