REAR CONSOLE

Service repair no - 76.25.04

Remove

  1. Slide both front seats forward for access.

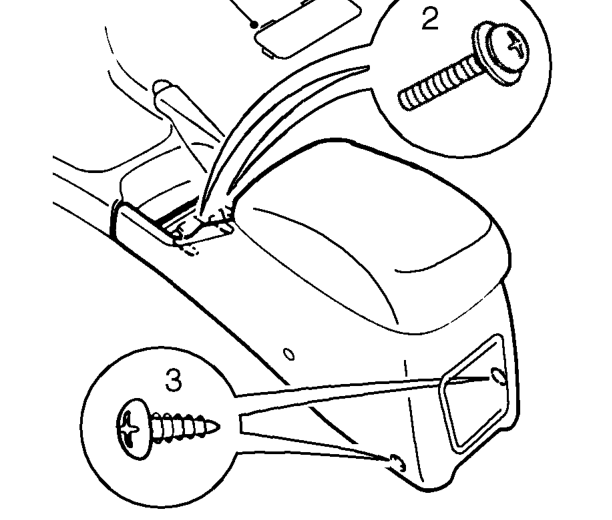

Rear console – Slide both front seats forward for access.
  1. Remove cover and remove 2 bolts securing front end of rear console.
  2. Remove 2 screws securing rear of console.

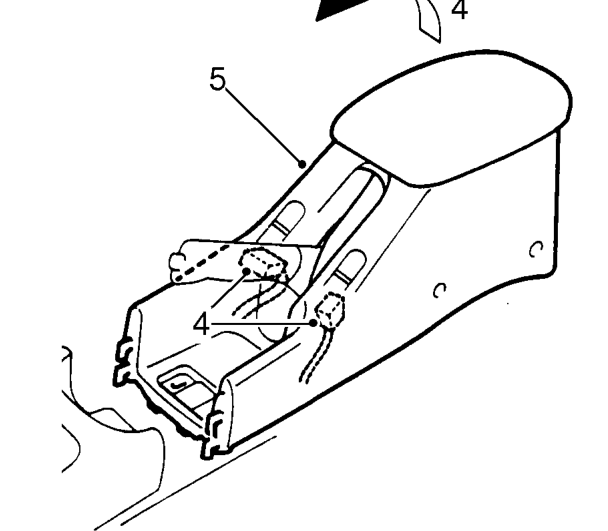

Rear console – Remove 2 screws securing rear of console.
  1. Raise console and disconnect multiplugs from window lift switches.
  2. Remove console.
