Rear console (page 2 of 2)

Do not carry out further dismantling if component is removed for access only.

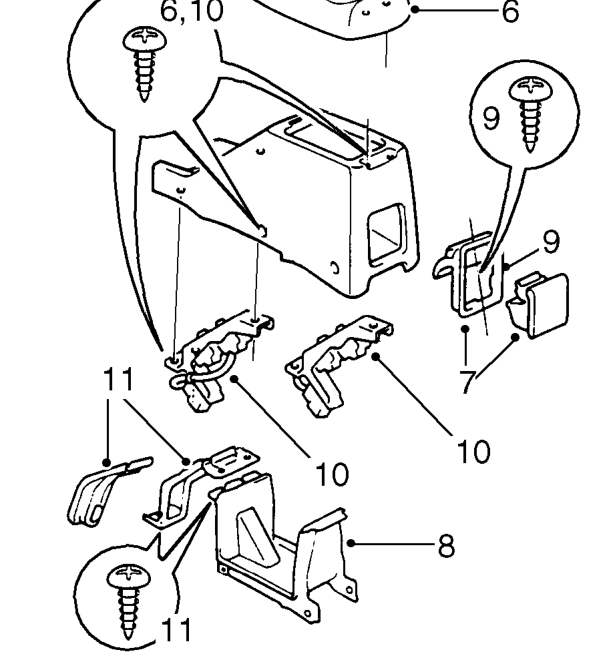

6. Open console lid, remove 2 screws and remove lid.
7. Remove ash tray.
8. Remove 4 screws and remove oddments tray.
9. Remove screw and remove ash tray flame shield.
10. Remove 6 screws and remove both window lift switch assemblies.
11. Remove remaining screw and remove hand brake lever grommet and its retaining plate.
12. Remove nut and retaining clip from ash tray aperture.

Refit

1. Fit retaining clip and nut to ash tray aperture.
2. Fit hand brake lever grommet and its retaining plate. Fit lower screw to secure.
3. Fit both switch assemblies and secure with screws.

NOTE: The switch assembly with the brown multiplug connection is fitted to the RH side.

4. Fit ash tray flame shield and secure with screw.
5. Fit oddments tray and secure with screws.
6. Fit ash tray.
7. Fit console lid and secure with screws.
8. Fit rear console and connect window lift switch multiplugs.
9. Align console and secure with screws and bolts.
10. Fit bolt cover.
11. Reposition front seats.
