’D’ POST LOWER FINISHER

Service repair no - 76.13.31

Remove

  1. Remove rear seat squab. See Seats and seat belts.
’d’ post lower finisher – Remove rear seat squab. See Seats and seat belts.

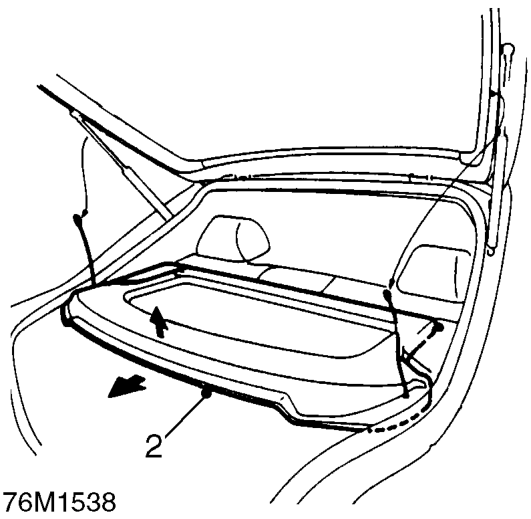

  1. Remove rear parcel tray.
’d’ post lower finisher – Remove rear parcel tray.

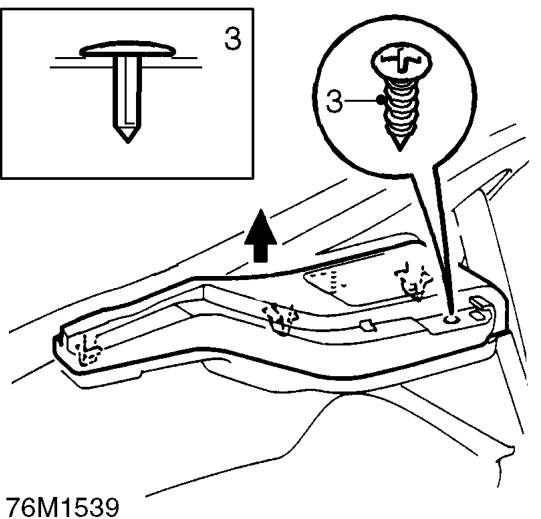

  1. Remove screw and release 3 clips securing parcel tray support panel.
  2. Remove support panel.
  3. Fold rear seat cushion forward.
’d’ post lower finisher – Fold rear seat cushion forward.

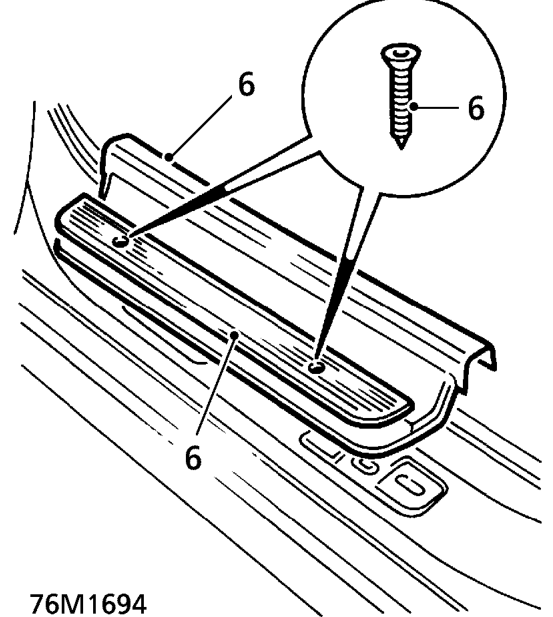

  1. Remove 2 screws from rear carpet retainer and tread plate. Remove tread plate and carpet retainer.
’d’ post lower finisher – Remove 2 screws from rear carpet retainer and tread plate. Remove tread plate and carpet r

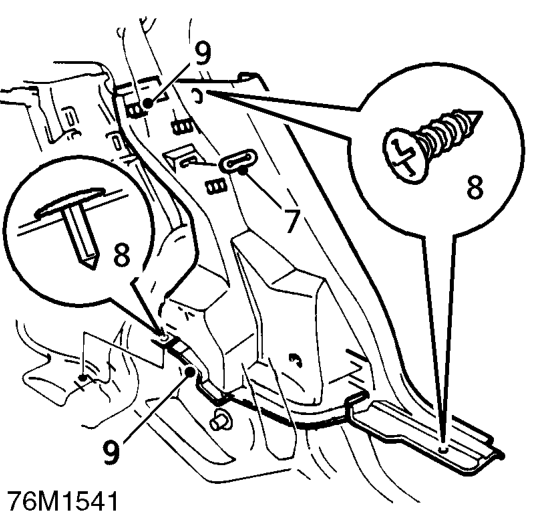

  1. Remove rear squab catch striker rubber.
  2. Remove 2 screws and trim fastener securing ’D’ post lower finisher.
  3. Release finisher retaining clips and remove finisher.
  4. Remove retaining clips from finisher.
