Glove box

GLOVE BOX

Service repair no - 76.52.02

Remove

1. Remove 2 screws securing glove box to lower fascia rail.
2. Release glove box catch and remove glove box from fascia.

Refit

1. Fit and align glove box to fascia.
2. Fit and tighten 2 screws securing glove box to lower fascia rail.

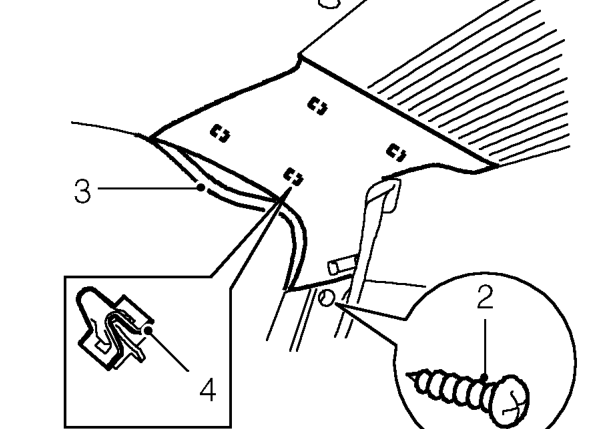

’D’ POST UPPER TRIM FINISHER - 4 DOOR

Service repair no - 76.13.30

Remove

1. Release rear seat squab from catch and fold seat forward.

2. Remove screw securing ’D’ post upper and lower finishers to body.
3. Release rear door seal from body flange.
4. Release 4 clips securing ’D’ post upper finisher to body and remove finisher.
5. Remove 4 clips from finisher and discard.

Refit

1. Fit NEW retaining clips to finisher.
2. Position finisher and secure to body.
3. Secure rear door seal to body flange.
4. Fit and tighten screw securing upper and lower finishers to body.
5. Secure seat squab to catch.

NOTE: Ensure seat belt does not get caught between squab and catch.
