Rear parcel tray - 4 door

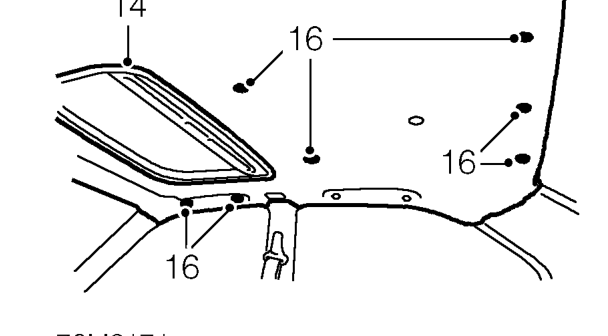

14. Remove finisher from sun roof aperture.
15. Fully recline both front seats.
16. Remove 5 studs and 4 grab handle blanks.
17. With assistance remove headlining through passenger door.

CAUTION: Take care not to bend headlining on removal and refitting.

Refit

1. With assistance position centre high mounted stop headlining to roof, fit studs and grab handle blanks to secure headlining.
2. Fit sun roof finisher to headlining.
3. Fit centre high mounted stop trim and secure with Torx screws.
4. Position alarm sensor, connect multiplug and secure to headlining.
5. Position grab handles and secure with screws.
6. Fit screw covers.
7. Position sun visors and clips, fit and tighten screws.
8. Fit roof lamp. See ELECTRICAL, Repairs.
9. Fit ’D’ post upper trim finishers. See this section.
10. Fit ’B’ post upper finishers. See this section.
11. Fit ’A’ post finishers. See this section.
12. Secure sealing rubbers to the top of each door aperture.

REAR PARCEL TRAY - 4 DOOR

Service repair no - 76.67.06

Remove

1. Remove both ’D’ post lower trim finishers. See this section.
2. Remove both ’D’ post upper trim finishers. See this section.
3. Remove both rear speakers. See ELECTRICAL, Repairs.

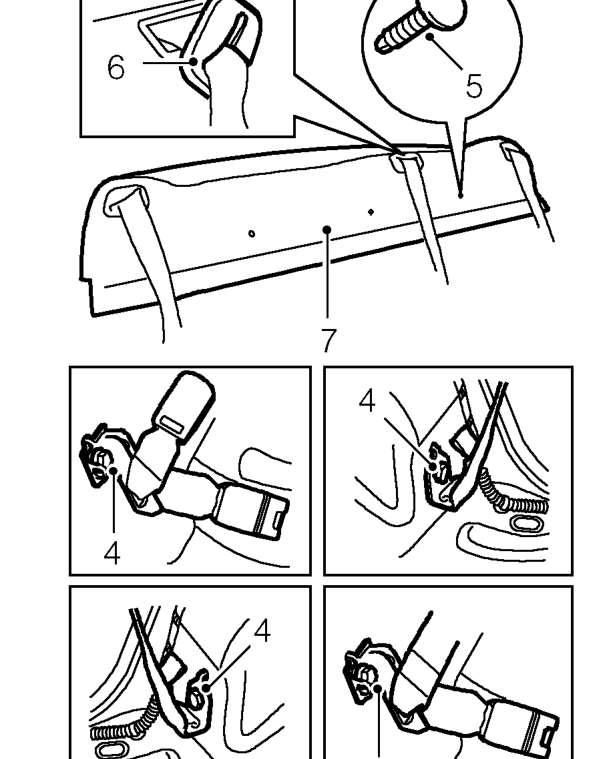

4. Remove 4 bolts securing rear seat belt buckles to floor.
5. Remove 5 trim fixings securing parcel tray to body.
6. Release seat belt guides from parcel tray and remove from belts.
7. Remove parcel tray.
