Fascia veneered panel

Do not carry out further dismantling if component is removed for access only.

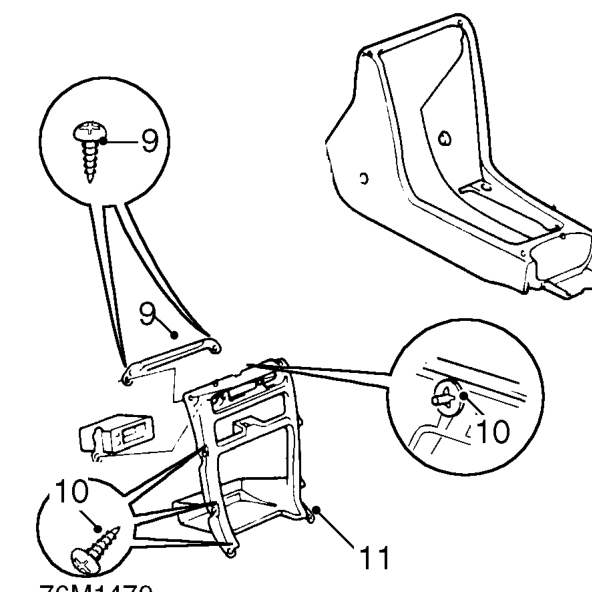

9. Remove 2 screws and remove upper support bracket.
10. Remove 3 spire clips and 6 screws securing radio aperture panel.
11. Remove radio aperture panel.

Refit

1. Fit radio aperture panel and secure with 6 screws and 3 spire clips.
2. Fit upper support bracket and secure with 2 screws.
3. Fit front console and align to fascia.
4. Fit 5 screws securing console to fascia.
5. Position hazard and heated rear screen switches, connect multiplugs and secure switches to console.
6. Fit radio mounting socket.
7. Fit trim panel to gear selector housing.
8. Fit radio. See ELECTRICAL, Repairs.
9. Fit rear console. See this section.

FASCIA VENEERED PANEL

Service repair no - 76.46.24

Remove

1. Remove front console. See this section.

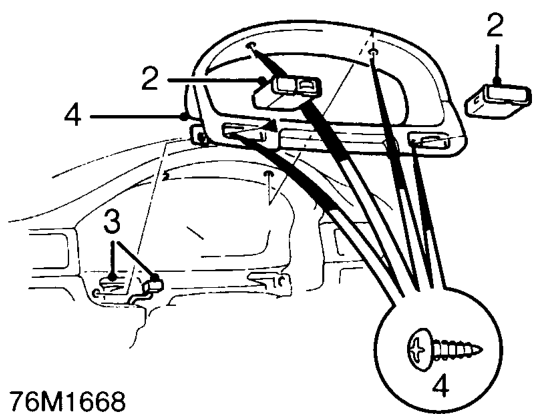

2. Remove switch blank and release fog lamp switch from instrument panel surround.
3. Disconnect fog lamp switch multiplug.
4. Remove 4 screws and remove instrument panel surround.

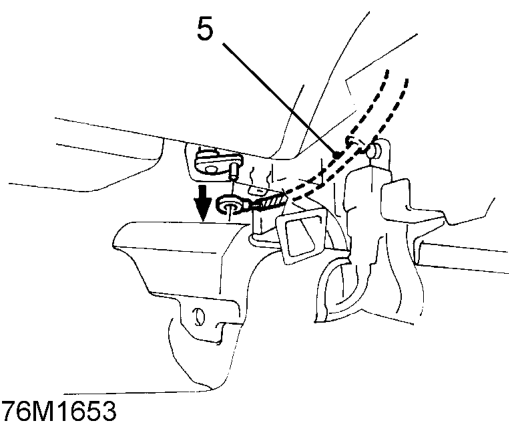

5. Disconnect air vent cable from heater.

CAUTION: Fit protection to fascia before removing veneered panels.
