’D’/’e’ post finisher

Refit

1. Fit retaining clips to finisher.
2. Position finisher, ensure seat belt is fitted into slot in finisher.

CAUTION: Ensure seat belt is not trapped behind finisher.

3. Secure finisher retaining clips, fit trim fastener and screws.
4. Fit rubber to squab catch striker.
5. Fit carpet retainer and tread plate and secure with screws.
6. Fold rear seat cushion down.
7. Position parcel tray support panel, secure retaining clips and fit screw.
8. Refit parcel tray.
9. Refit rear seat squab. See Seats and seat belts.

’D’/’E’ POST FINISHER

Service repair no - 76.13.66

Remove

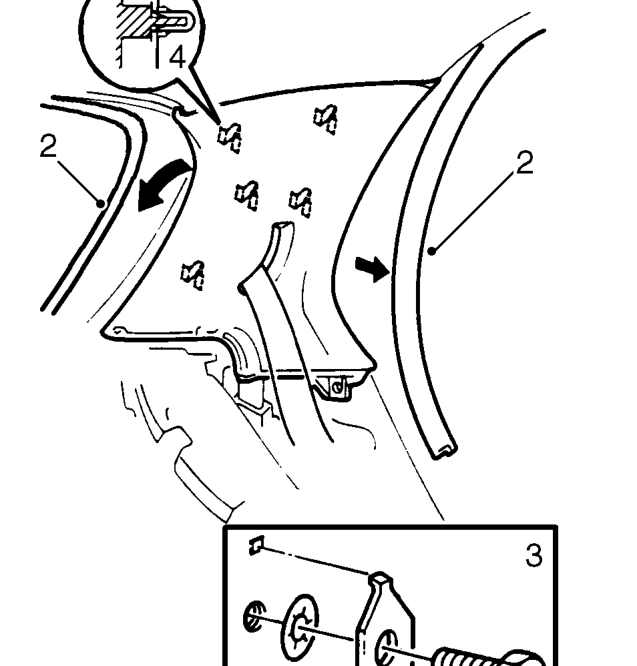

1. Remove ’D’ post lower finisher. See this section.

2. Release taildoor and rear door seal from body flange.
3. Remove lower anchorage bolt from rear seat belt.
4. Release 5 clips securing ’D’/’E’ post finisher to body and feed seat belt through finisher.
5. Remove 5 clips and insulation pad from finisher.

Refit

1. Fit retaining clips and insulation pad to finisher.
2. Feed seat belt through finisher, secure finisher to body.
3. Position seat belt to lower anchorage point and tighten bolt to 32 Nm.
4. Refit taildoor and rear door seals.
5. Refit ’D’ post lower trim finisher. See this section.
