Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Luggage compartment centre casing

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Interior trim components › Luggage compartment centre casing
BodyLuggage compartment centre casing

LUGGAGE COMPARTMENT CENTRE CASING

Service repair no - 76.13.53

Remove

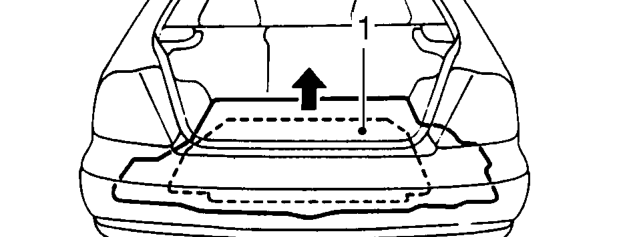

Luggage compartment centre casing – Service repair no - 76.13.53
  1. Raise luggage compartment carpet and board.

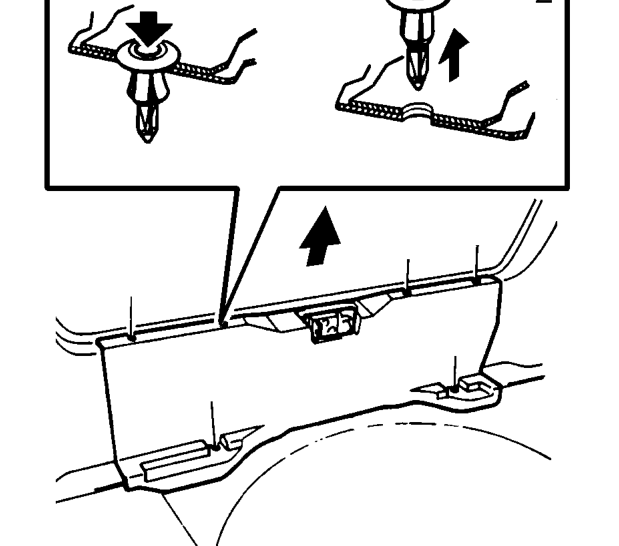

Luggage compartment centre casing – Raise luggage compartment carpet and board.
  1. Push down centre pins, remove 6 studs and remove luggage compartment casing.

Refit

  1. Position casing and secure with studs.
  2. Fit luggage compartment board and carpet.

HEADLINING

Service repair no - 76.64.01

NOTE: headlining is identical to headlining with sun roof finisher. See Sunroof.
