HEADLINING WITH SUN ROOF

Service repair no - 76.64.15

Remove

  1. Remove both ’A’ post finishers. See this section.
  2. Remove both ’B’ post finishers upper. See this section.
  3. Remove both ’D’/’E’ finishers. See this section.
  4. Remove roof lamp. See ELECTRICAL, Repairs.
Headlining with sun roof – Remove roof lamp. See ELECTRICAL, Repairs.

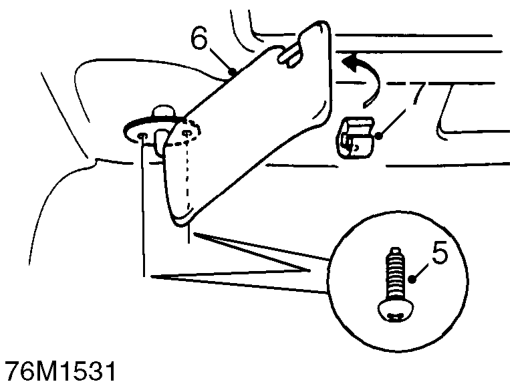

  1. Release sun visor from clip and remove 2 screws securing each sun visor.
  2. Remove sun visors.
  3. Remove screws and remove each sun visor clip.
Headlining with sun roof – Remove screws and remove each sun visor clip.

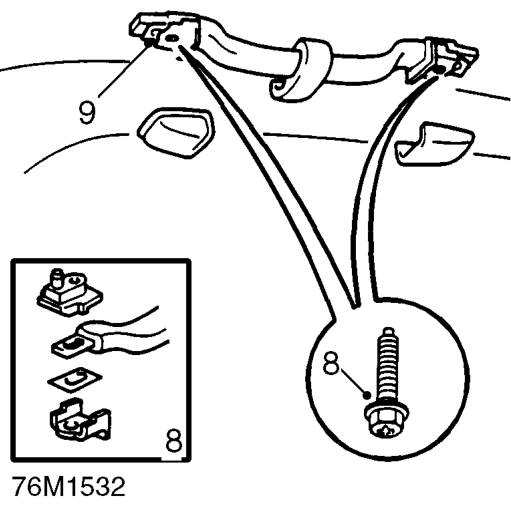

  1. Remove 2 covers and 2 screws securing each grab handle.
  2. Remove 3 grab handles.
Headlining with sun roof – Remove 3 grab handles.

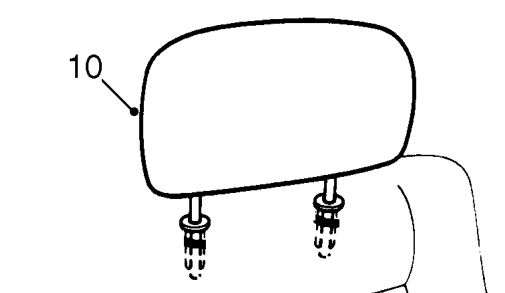

  1. Up to 97.5 MY: Remove head rest from each front seat. 97.5 MY on: Remove both front and rear seat head rests.
Headlining with sun roof – Up to 97.5 MY: Remove head rest from each front seat. 97.5 MY on: Remove both front and re

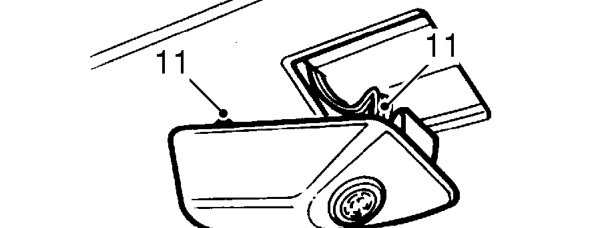

  1. Release alarm sensor from headlining and disconnect multiplug.
Headlining with sun roof – Release alarm sensor from headlining and disconnect multiplug.

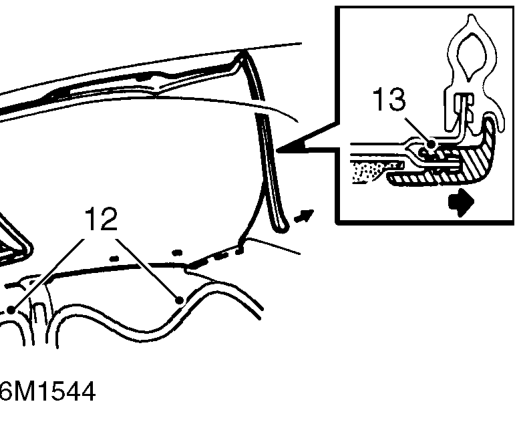

  1. Release sealing rubbers from the top of each door aperture.
  2. Remove rear finisher from headlining.
