TRIM CASING - TAILGATE

Service repair no - 76.34.11

Remove

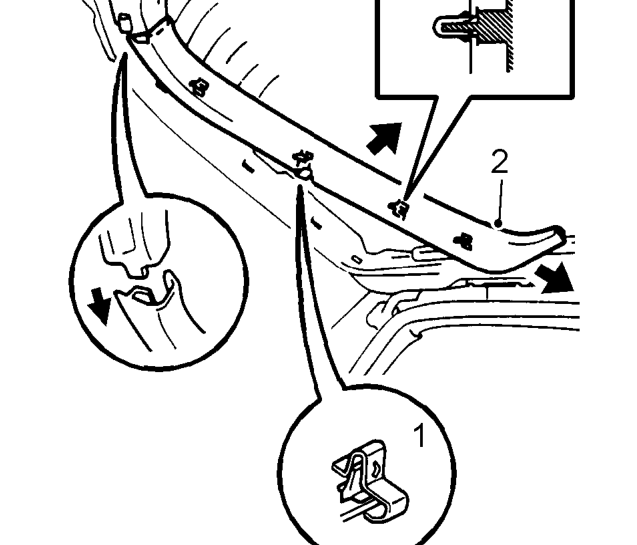

Trim casing - tailgate – Service repair no - 76.34.11
  1. Release 4 clips securing each side finisher to tailgate.
  2. Remove 2 tailgate side finishers.

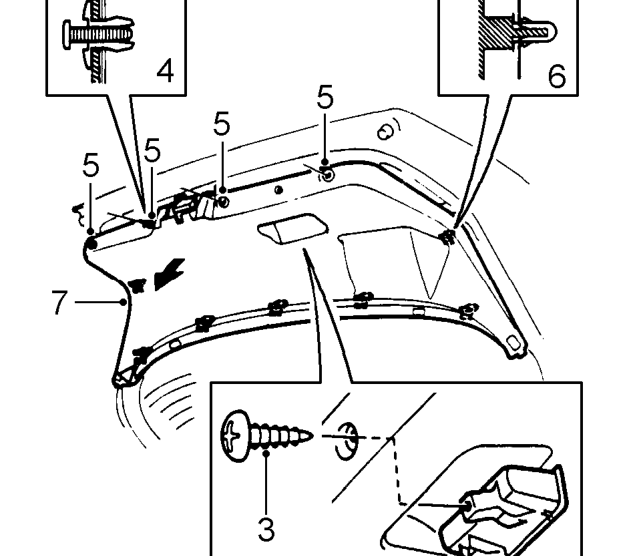

Trim casing - tailgate – Remove 2 tailgate side finishers.
  1. Remove screw and remove tailgate grip.
  2. Slacken 4 scrivet screws securing trim casing to tailgate.
  3. Remove 4 scrivets.
  4. Release 7 clips securing trim casing to tailgate.
  5. Remove tailgate trim casing.
  6. If necessary, remove 7 clips from old trim casing and fit to new.

Refit

  1. Position trim casing to tailgate and secure with clips.
  2. Fit 4 scrivets securing trim casing to tailgate and tighten screws.
  3. Fit tailgate grip and secure with screw.
  4. Position side finishers to tailgate and press to secure.
