BOOT LID LATCH

Service repair no - 76.19.11

Remove

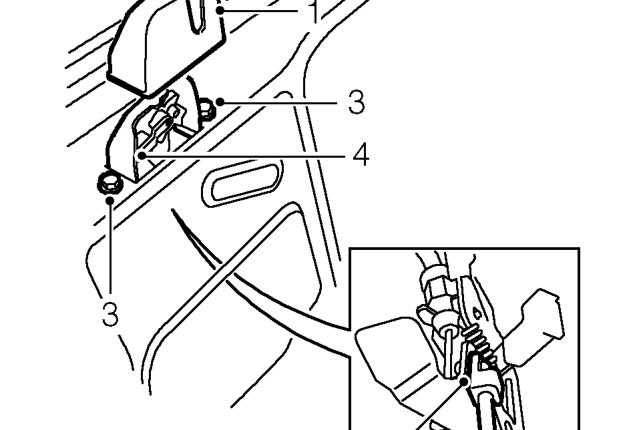

Boot lid latch – Service repair no - 76.19.11
  1. Release latch cover from locating tab and remove cover.
  2. Release control rod clip and release rod from latch.
  3. Remove 2 screws securing latch to boot lid.
  4. Release latch from boot lid.

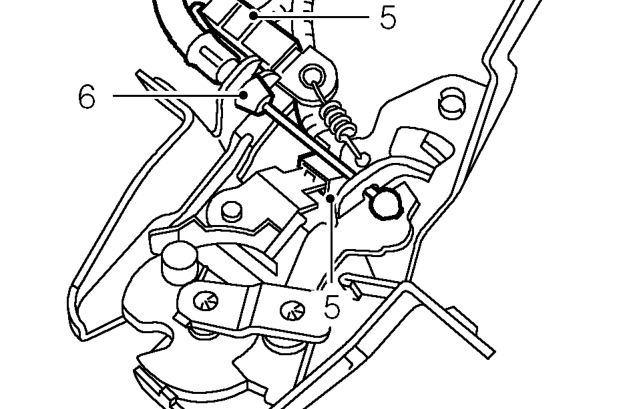

Boot lid latch – Release latch from boot lid.
  1. Disconnect 2 Lucars.
  2. Disconnect release cable from latch and remove latch.

Refit

  1. Position latch to boot lid and connect release cable.
  2. Connect Lucars to latch.
  3. Align latch to boot lid, fit screws and tighten to 9 Nm.
  4. Connect control rod to latch and secure with clip.
  5. Fit latch cover.
