Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Electric window lift components

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Doors › Electric window lift components
BodyElectric window lift components

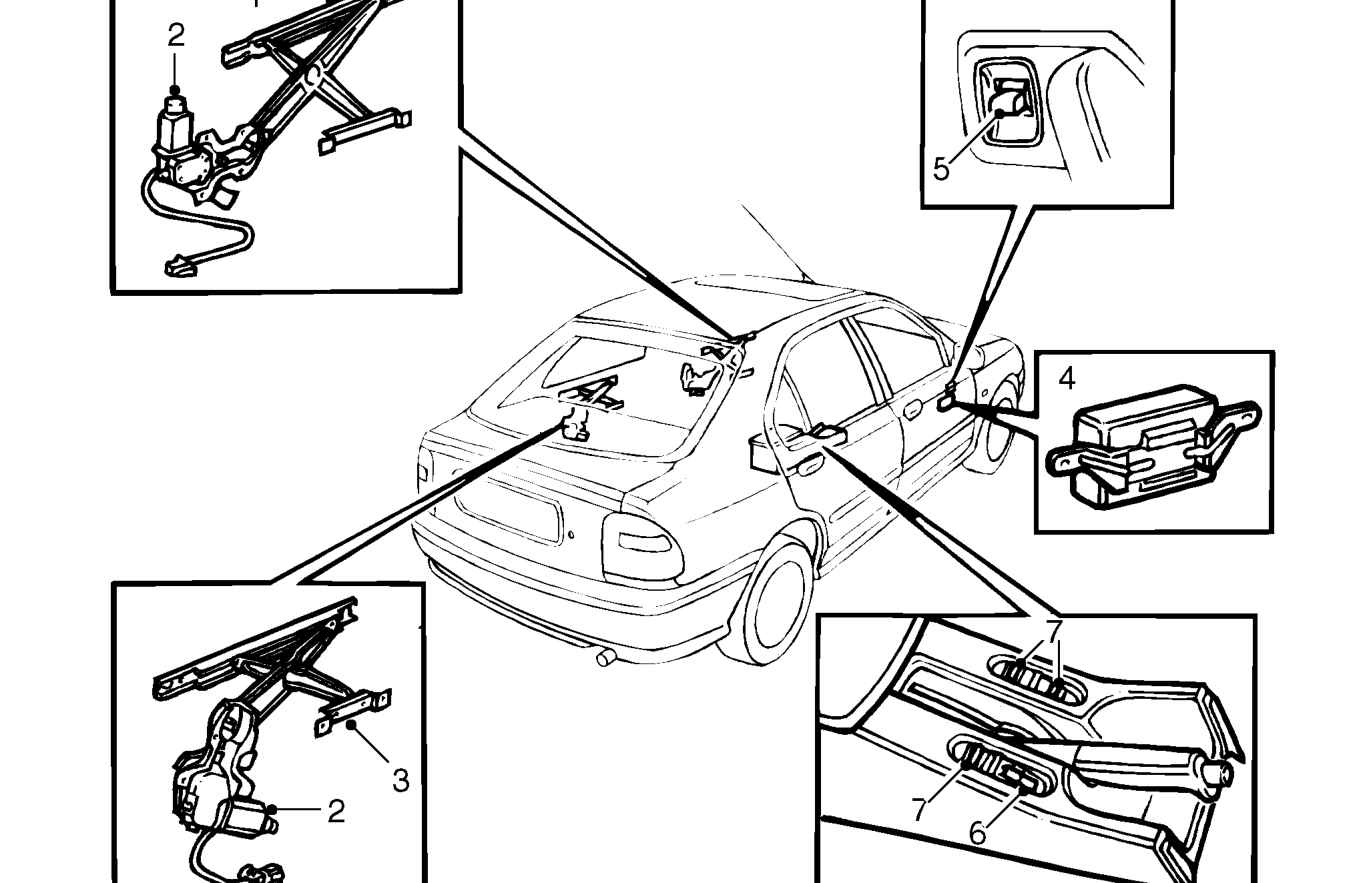

ELECTRIC WINDOW LIFT COMPONENTS

Electric window lift components
  1. Front door glass regulator
  2. Window lift motor
  3. Rear door glass regulator
  4. Window lift control unit
  5. Individual window switch
  6. Master control switch - passenger windows
  7. Driver’s control switches - passenger windows 4 window lift system shown
