Front door trim casing (page 2 of 2)

Do not carry out further dismantling if component is removed for access only.

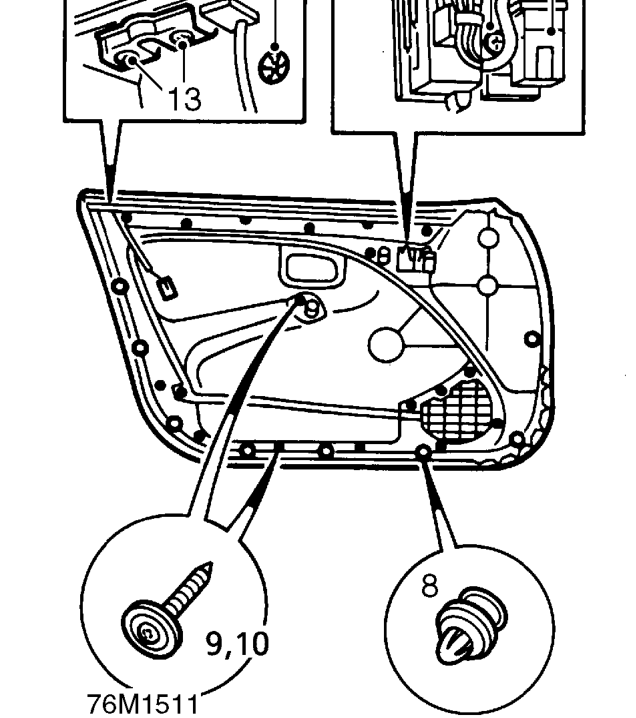

8. Remove 8 studs from trim casing.
9. Remove 10 screws and remove door pocket.
10. Remove 2 screws and remove grab handle.
11. Remove screw and remove window lift switch.
12. Release lock indicator light multiplug from casing.
13. Remove 2 screws and remove lock indicator assembly and clamp plate.
14. Remove 6 spire clips and remove trim insert from casing.

Refit

1. Fit trim insert and secure with spire clips.
2. Fit lock indicator light, fit clamp.
3. Fit screws to secure lock indicator.
4. Secure lock indicator light multiplug to trim casing.
5. Fit window lift switch to trim casing and fit screw.
6. Fit grab handle and fit screws.
7. Fit door pocket and fit screws.
8. Fit securing studs to trim casing.
9. Position trim casing to door and connect window lift and lock indicator light multiplugs.
10. Fit trim casing over top edge of door, align studs and secure.
11. Fit screws securing grab handle to door.
12. Fit scrivet to secure trim casing to door.
13. Fit remote release assembly to control rod and secure with clip.
14. Locate lock release assembly into door panel and slide rearwards. Fit screw.
