Taildoor assembly (page 2 of 2)

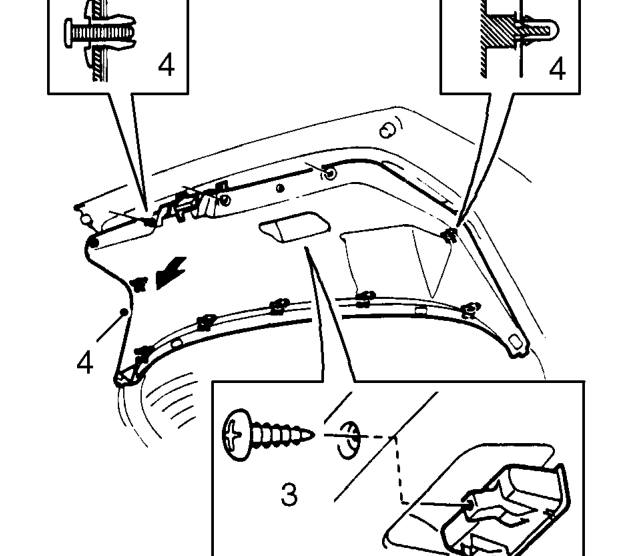

3. Remove screw from taildoor trim casing grip. Remove grip.
4. Remove 4 scrivets, release 7 clips and remove taildoor casing.

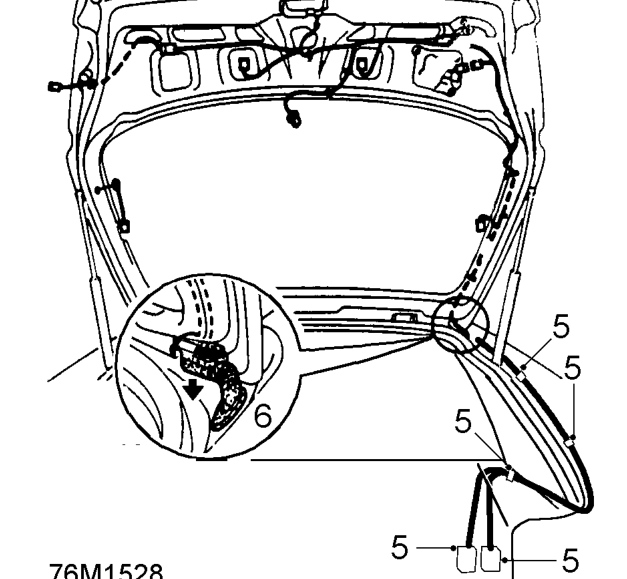

5. Release 3 clips securing taildoor harness to body then disconnect multiplugs from body harness.
6. Release taildoor harness rubber covers from body and taildoor then pull harness through body aperture.

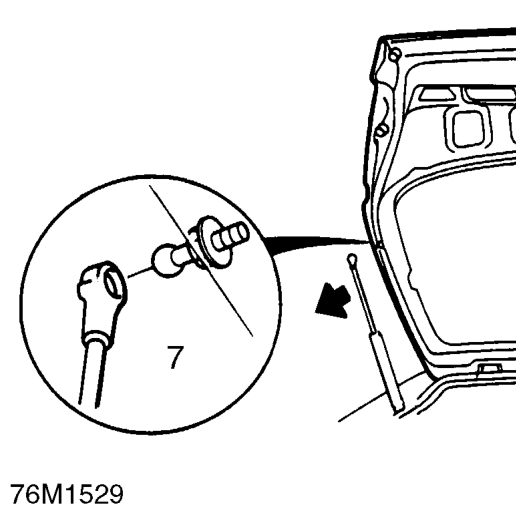

7. Support the taildoor and release support struts from taildoor.

8. Remove headlining rear trim.

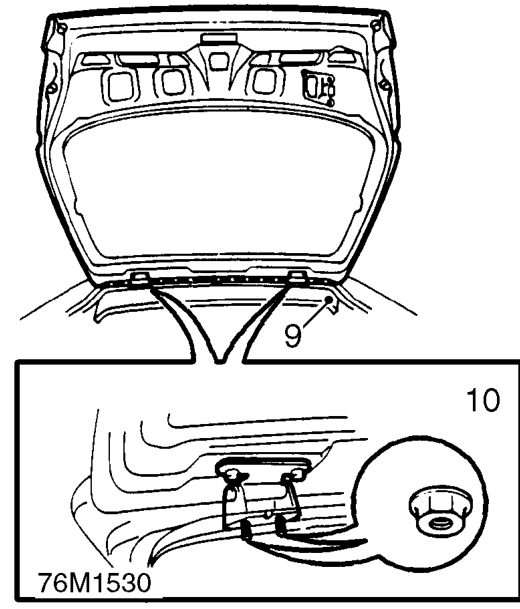

9. Pull down rear edge of headlining.

NOTE: Take care not to bend the headlining.

10. Remove nuts securing taildoor hinges to roof and with assistance remove taildoor.
11. Remove sealant from hinges and roof.
