Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Female

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0026 › Female
ConnectorsFemale

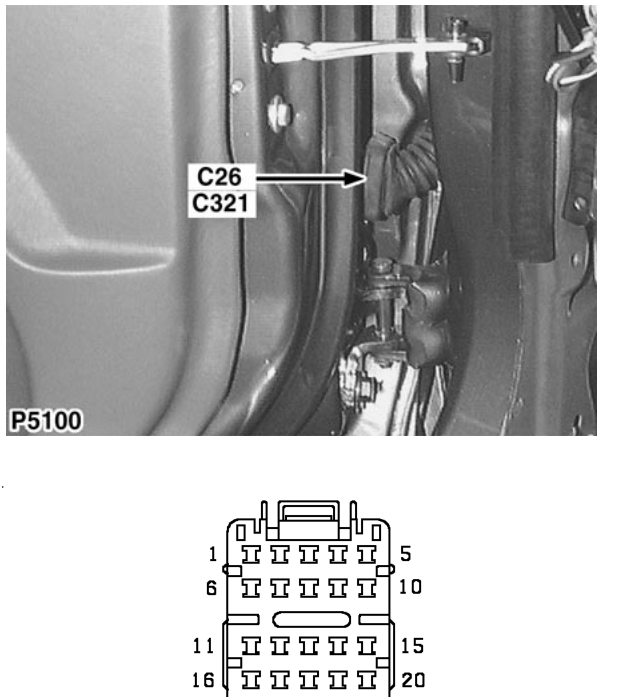

Diagram

Body harness to door harness

Female

DARK GREY

LH ’A’ post

Cav Col CCT

3 SB ALL 4 UG ALL 5 B ALL 9 BY ALL 10 YR ALL 11 UB ALL 15 WR ALL 16 UW ALL 17 BY 14 17 BU 70 20 UG ALL 21 YW ALL 22 UG ALL 25 UY ALL
