Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0027 › Female
ConnectorsFemale

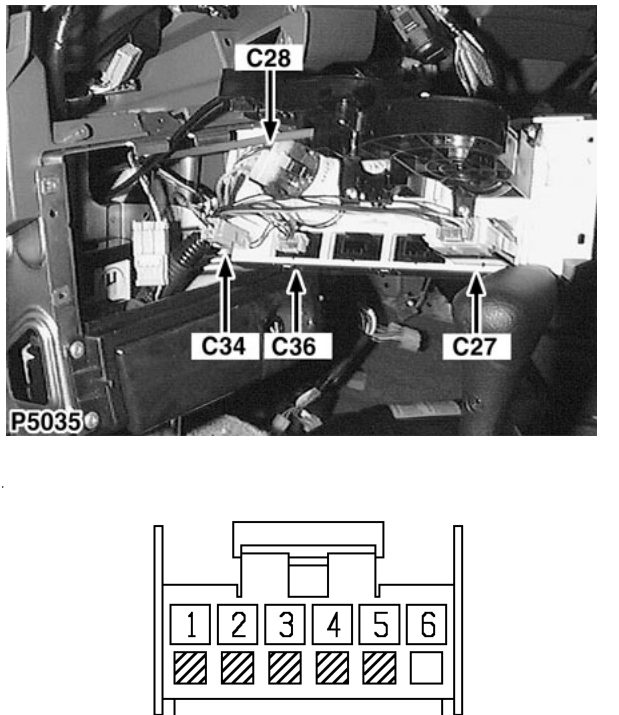

Fresh/recirculation air switch
Female
GREEN
Behind heater control panel
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | RU | 69 |
| 2 | RU | 70 |
| 2 | RB | 79 |
| 2 | RB | 80 |
| 3 | BU | 69 |
| 3 | BU | 70 |
| 3 | BY | 79 |
| 3 | BY | 80 |
| 4 | GR | ALL |
| 5 | B | ALL |
| 6 | GW | ALL |
