Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0033 › Female

ConnectorsFemale · page 1 of 2

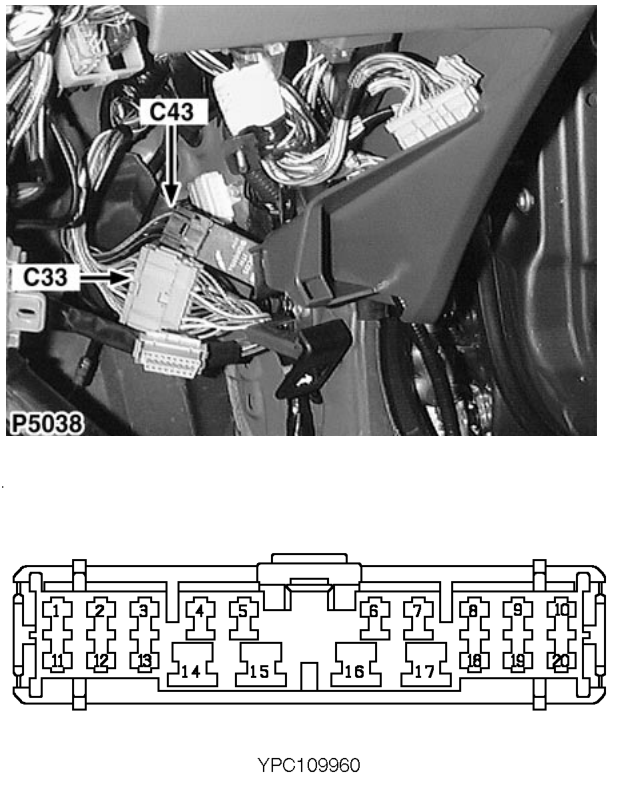

Main harness to body harness - RHD

Female

BLUE

Behind RH side of fascia

Cav	Col	CCT
1	LGB	7
1	LGB	80
2	G	7
2	G	80
3	GW	70
3	GW	80
4	WY	70
4	WY	80
5	GB	70
5	GB	80
6	WR	70
6	WR	80

Cav	Col	CCT
7	YR	70
7	YR	80
8	UW	70
8	UW	80
9	UR	70
9	UR	80
10	UG	26
10	UG	70
11	GO	19
11	YG	70
12	GU	70
12	GU	80
