Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0067 › Male

ConnectorsMale · page 1 of 2

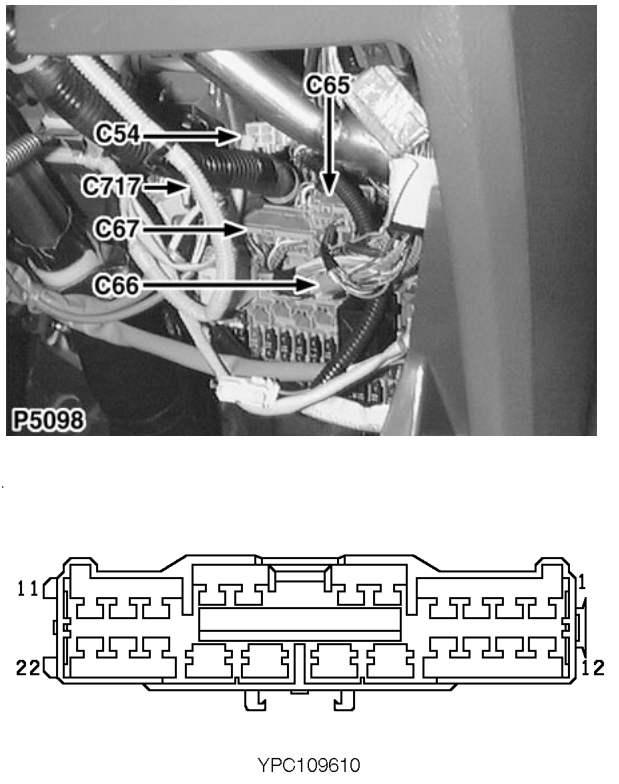

Main harness to fascia harness - K, T, L Series

Male

LIGHT GREY

Behind passenger compartment fusebox cover

Cav	Col	CCT
1	UR	9
1	YU	79
2	UR	9
2	RY	80
3	RY	79
3	U	80
4	U	79
4	YG	80
5	YG	79
5	WB	80
6	WB	79
6	UY	80

Cav	Col	CCT
7	UY	79
7	RW	80
8	UB	14
8	RW	79
9	GR	4
9	UW	14
9	GR	17
9	GO	21
9	GR	35
10	YB	14
10	GO	16
10	GO	17
