Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0103 › Female
ConnectorsFemale

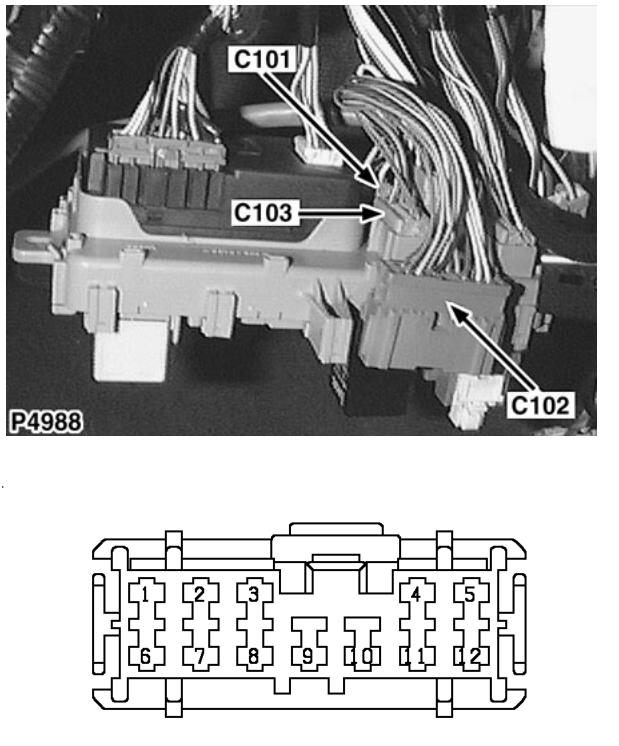

Passenger compartment fusebox
Female
GREEN
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | GU | ALL |
| 3 | GY | ALL |
| 4 | BY | 15 |
| 5 | GB | ALL |
| 7 | GR | ALL |
| 8 | RU | ALL |
| 11 | RB | ALL |
| 12 | WR | ALL |
