Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

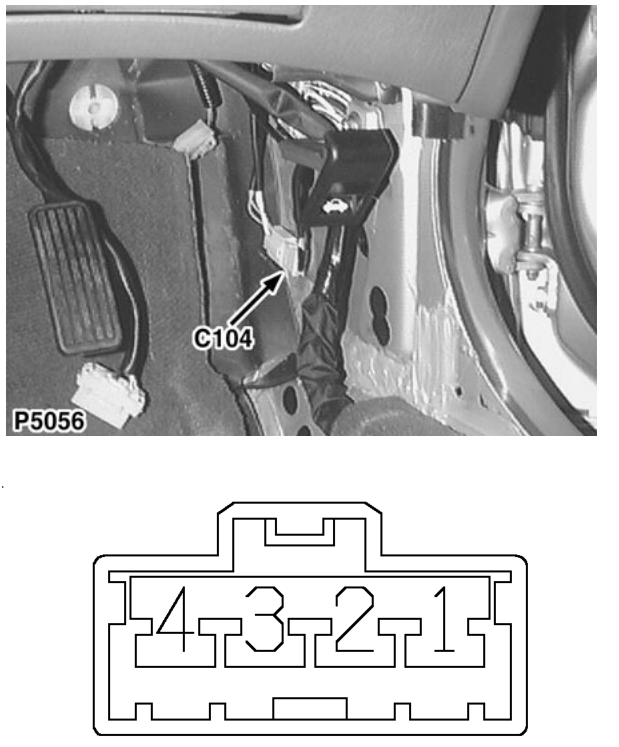

- C0104 › Male
ConnectorsMale
Main harness to body harness
Male
ORANGE
Behind footwell trim panel - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | W | 9 |
| 1 | W | 9 |
| 1 | GY | 13 |
| 1 | GY | 13 |
| 2 | W | 9 |
| 2 | W | 9 |
| 2 | UY | 13 |
| 2 | UY | 13 |
| 3 | G | 9 |
| 3 | G | 9 |
| 3 | P | 13 |
| 3 | P | 13 |
| Cav | Col | CCT |
|---|---|---|
| 4 | G | 9 |
| 4 | G | 9 |
| 4 | S | 13 |
| 4 | S | 13 |
