Male

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0105 › Male

ConnectorsMale · page 1 of 2

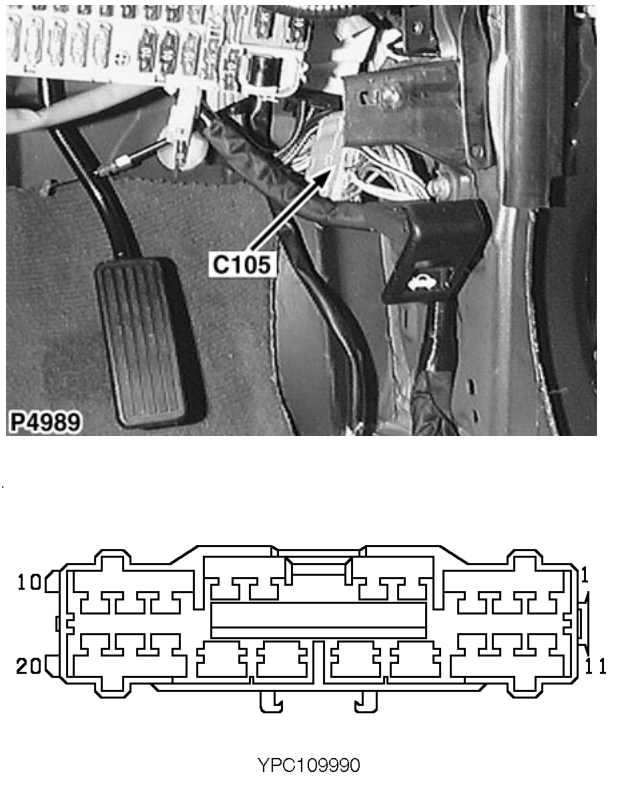

Main harness to body harness - RHD

Male

BLUE

Behind footwell trim panel - RH side

Cav	Col	CCT
1	LGB	7
1	LGB	75
2	G	7
2	G	75
3	GW	75
3	GW	78
4	WY	75
4	WY	78
5	GB	75
5	GB	78
6	WR	75
6	WR	78

Cav	Col	CCT
7	YR	75
7	YR	78
8	UW	75
8	UW	78
9	UR	75
9	UR	78
10	UG	28
10	UG	28
10	UG	29
10	UG	29
11	YG	75
11	YG	78

05 General
