Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0106 › Female
ConnectorsFemale

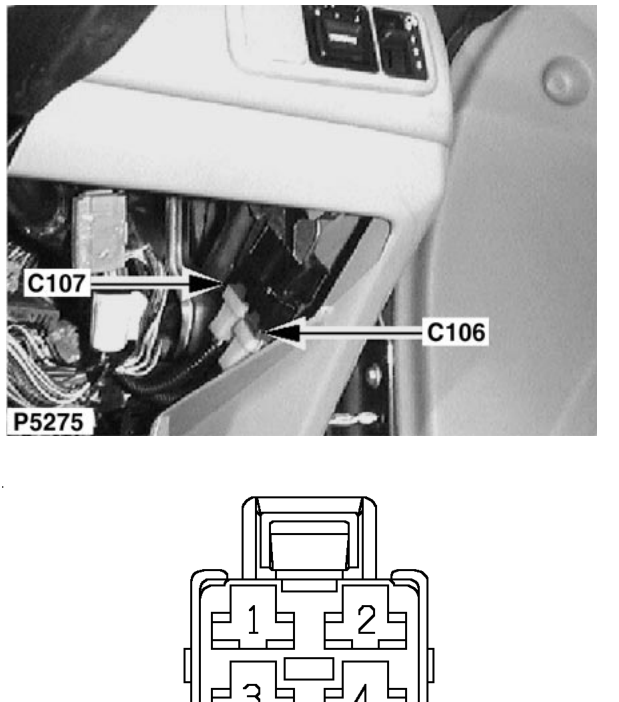

Passengers heated seat relay - RHD
Female
BROWN
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | BG | 25 |
| 1 | BG | 25 |
| 2 | WG | 25 |
| 2 | WG | 25 |
| 3 | B | 25 |
| 3 | B | 25 |
| 4 | WR | 25 |
| 4 | WR | 25 |
