Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0106 › Female
ConnectorsFemale

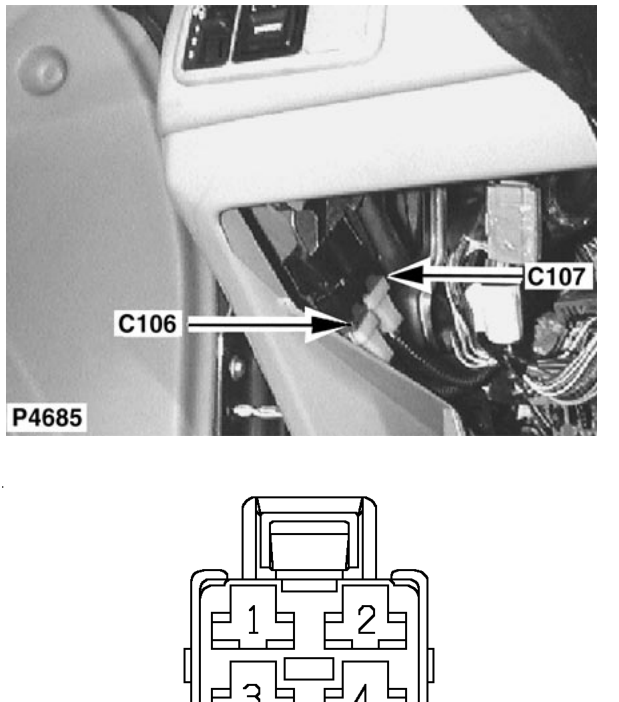

Drivers heated seat relay - LHD
Female
BROWN
Behind LH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | BR | 25 |
| 1 | BR | 25 |
| 2 | WG | 25 |
| 2 | WG | 25 |
| 2 | WG | 25 |
| 3 | B | 25 |
| 3 | B | 25 |
| 3 | B | 45 |
| 3 | B | 45 |
| 4 | WU | 25 |
| 4 | WU | 25 |
