Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0112 › Female
ConnectorsFemale

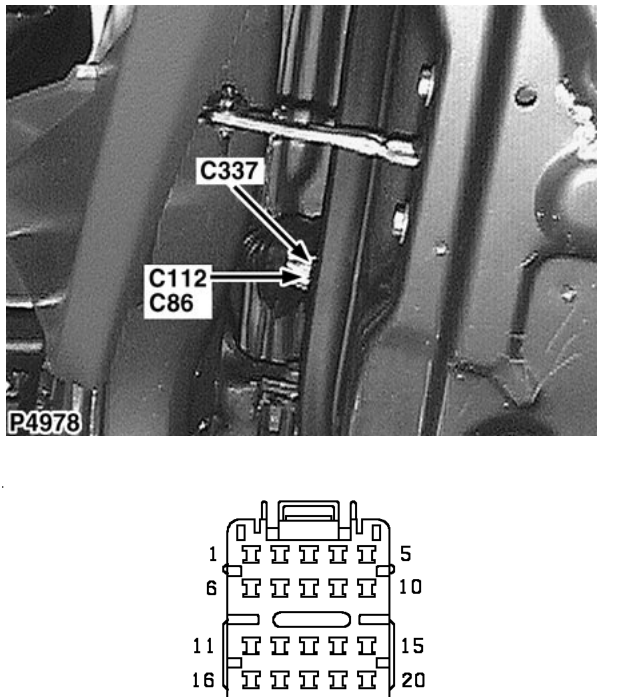

Body harness to drivers door harness - RHD
Female
DARK GREY
Inside driver’s door
Cav Col CCT Cav Col CCT
1 UR 75 10 YR 62 1 UR 78 10 YR 78 2 UW 75 11 YB 15 2 UW 78 11 YB 15 3 NB 75 12 WY 26 3 NB 78 12 WY 26 4 RG 75 15 WR 62 4 RG 78 15 WR 78 5 B 26 16 YR 15 5 B 26 16 YR 15 5 B 27 17 BY 15 5 B 27 17 BY 15 9 BY 75 21 YW 15 9 BY 78 21 YW 15
