Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0112 › Female

ConnectorsFemale · page 1 of 2

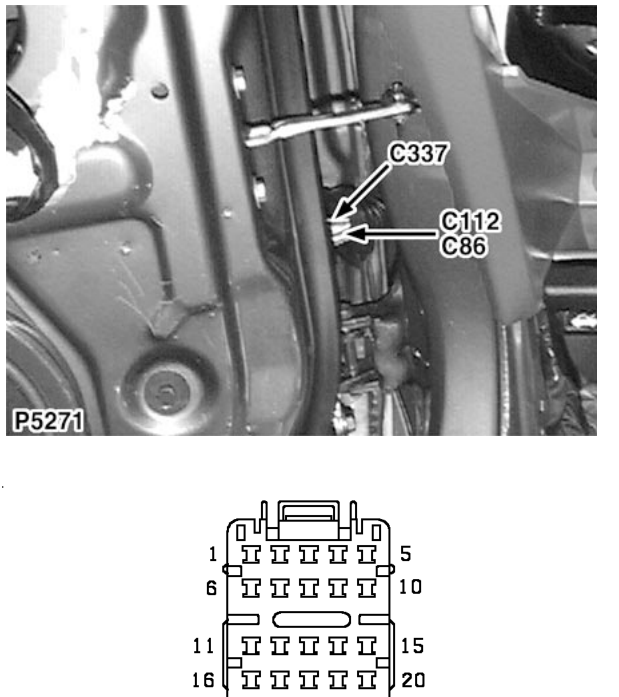

Body harness to drivers door harness - LHD

Female

DARK GREY

Inside driver’s door

Cav	Col	CCT
9	BY	66
9	BY	77
10	YR	62
10	YR	62
11	UB	14
11	UB	14
12	WY	26
12	WY	26
15	WR	62
15	WR	62

Cav Col CCT

1 UR 74 1 UR 77 2 UW 74 2 UW 77 3 SB 74 3 SB 77 4 UG 74 4 UG 77 5 B 25 5 B 43 5 B 43 5 B 44 5 B 44 5 B 45

05 General
