C0128 › Male

ConnectorsMale

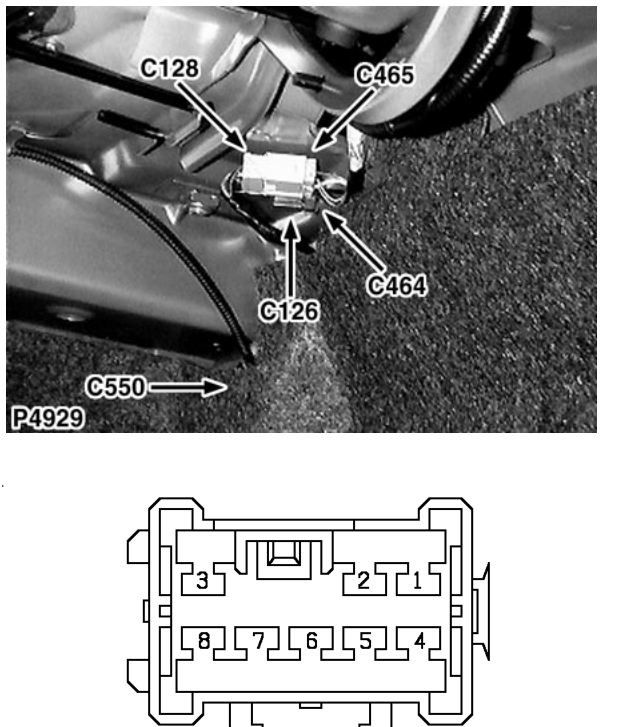

Body harness to boot lid harness - 4 Door

Male

LIGHT GREY

Base of ’C’ post RH side

Cav	Col	CCT
1	G	7
1	G	7
2	LGB	7
2	LGB	7
3	WR	77
3	WR	78
4	GB	7
4	GB	7
5	G	77
5	G	78
6	BY	77
6	BY	78

Cav	Col	CCT
7	RB	77
7	RB	78
8	GW	77
8	GW	78
