Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Male

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0128 › Male
ConnectorsMale

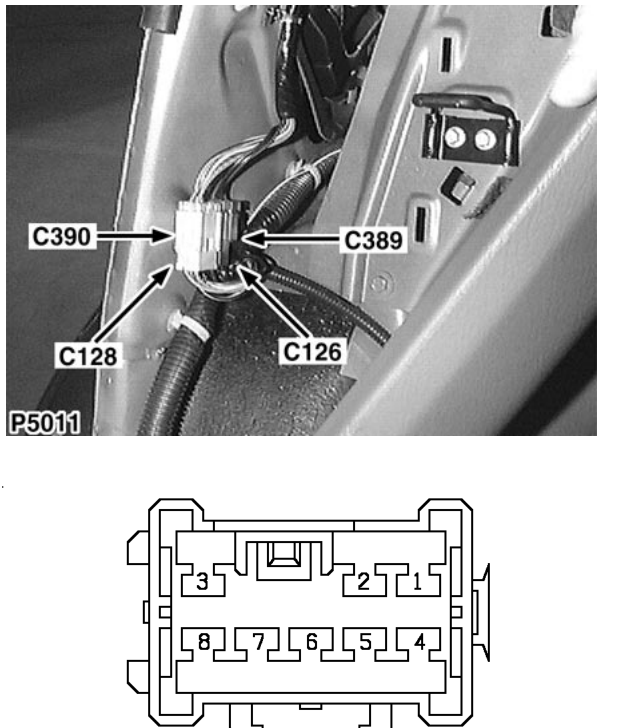

Diagram

Body harness to boot lid harness - 5 Door

Male

LIGHT GREY

Base of ’C’ post RH side

Cav Col CCT

1 G 74 1 G 75 2 LGB 74 2 LGB 75 4 GB 74 4 GB 75 5 G 74 5 G 75 6 BY 66 6 BY 75 7 RB 74 7 RB 75 8 GW 74 8 GW 75
